Parking System
01
Car Sliding Pallet Parking Platform Slider
Products Feature
● Ideal for independent parking scenarios.
● Equipped with a motorized system featuring a high - speed sliding mechanism, enabling quick and efficient operation.
● Capable of increasing the number of parking spaces by up to 100%, significantly optimizing parking capacity.
● Platform load - bearing capacity: 2500 kg, ensuring it can handle a wide range of vehicles.
● Standard platform width is 2100 mm, with the maximum width reaching up to 2500 mm, providing flexibility to accommodate different vehicle sizes.
● Allows for a maximum of three - row arrangements in a front - to - back configuration, maximizing the use of available space.
● Operates with low noise levels, minimizing any potential disturbances in the surrounding environment.
● Ensures a high level of operational and functional safety, incorporating advanced safety features to protect both users and vehicles.
● Features a fine - finished powder coating, which not only enhances its aesthetic appeal but also provides excellent durability and corrosion resistance.
● Enables two - way access, offering greater convenience and flexibility for vehicle entry and exit.
● Applied in garages of private houses or apartment buildings, providing a practical parking solution for residential areas.
● Utilized to boost the parking capacity of underground parking lots in facilities such as hotels, shopping malls, and office buildings, effectively alleviating parking pressure in commercial and public service areas.
● Suitable for residential and commercial buildings in megacities, addressing the acute demand for parking spaces in high - density urban environments.
Specifications
| Model No. | PSH-1 |
| Lifting Capacity | 2500kgs |
| Sliding Speed | 7-9 M/min |
| Power Supply/Motor Capacity | 380V, 50Hz, 3Ph |
| Control Mode | PLC control system |
| Drive Mode | Motor+Chain |

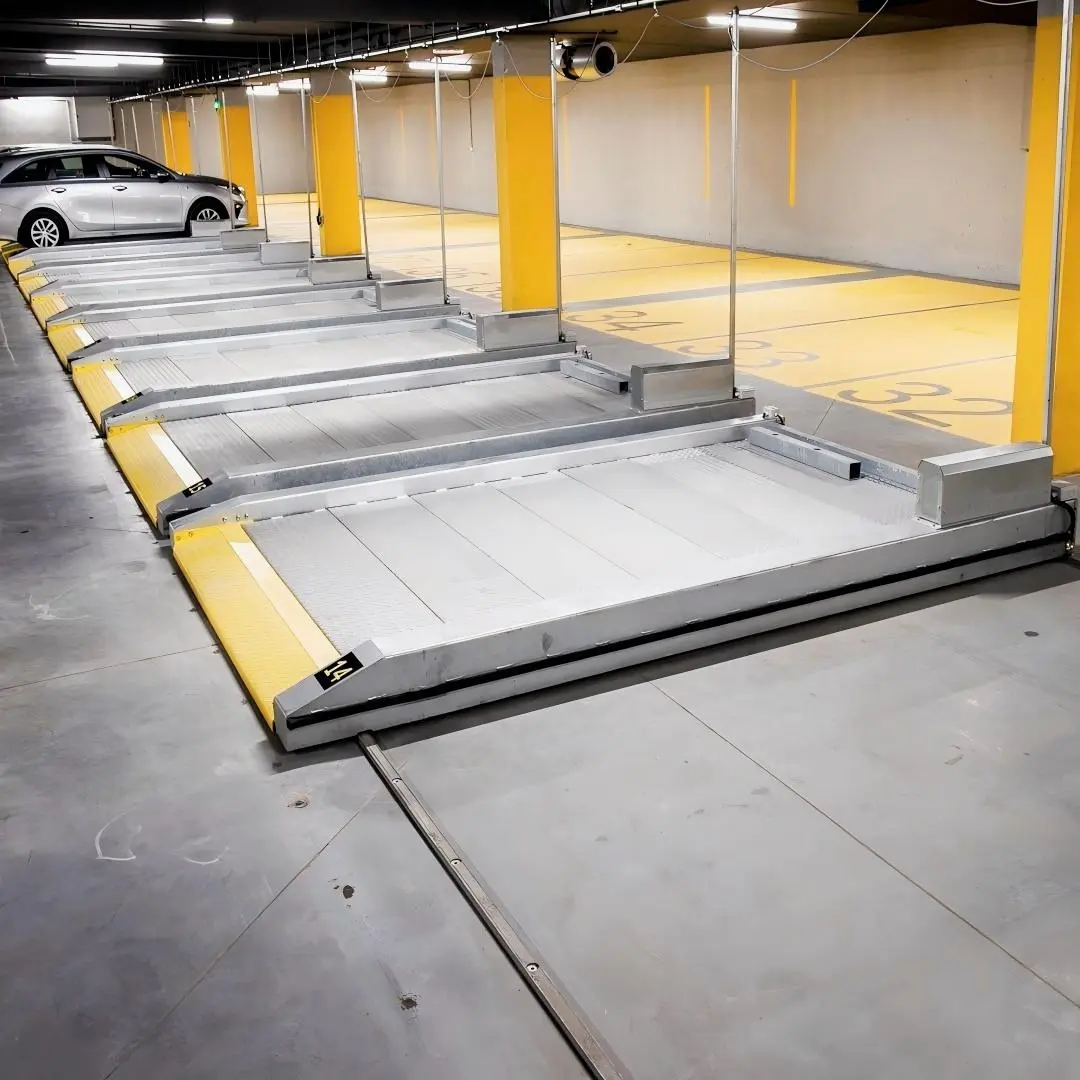

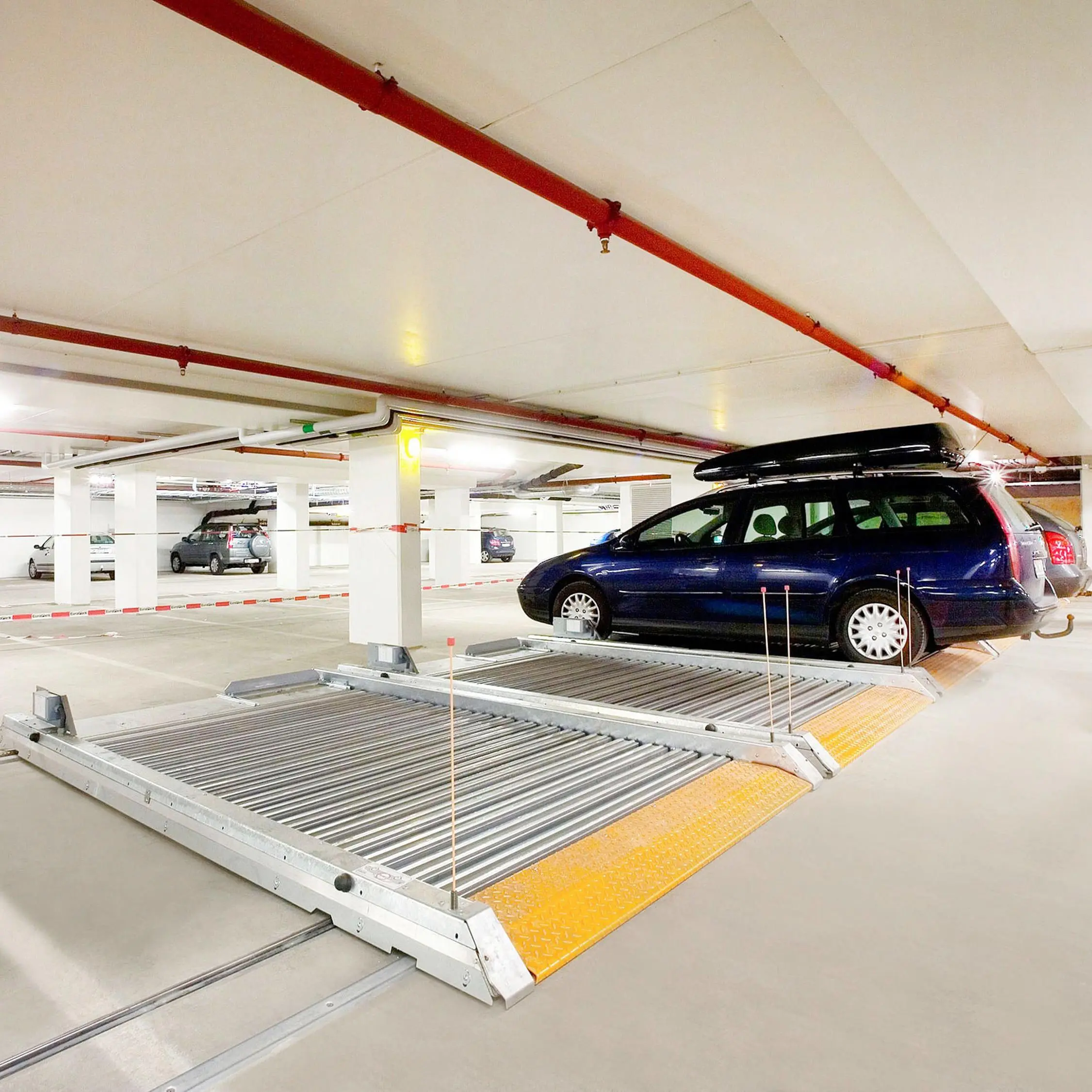

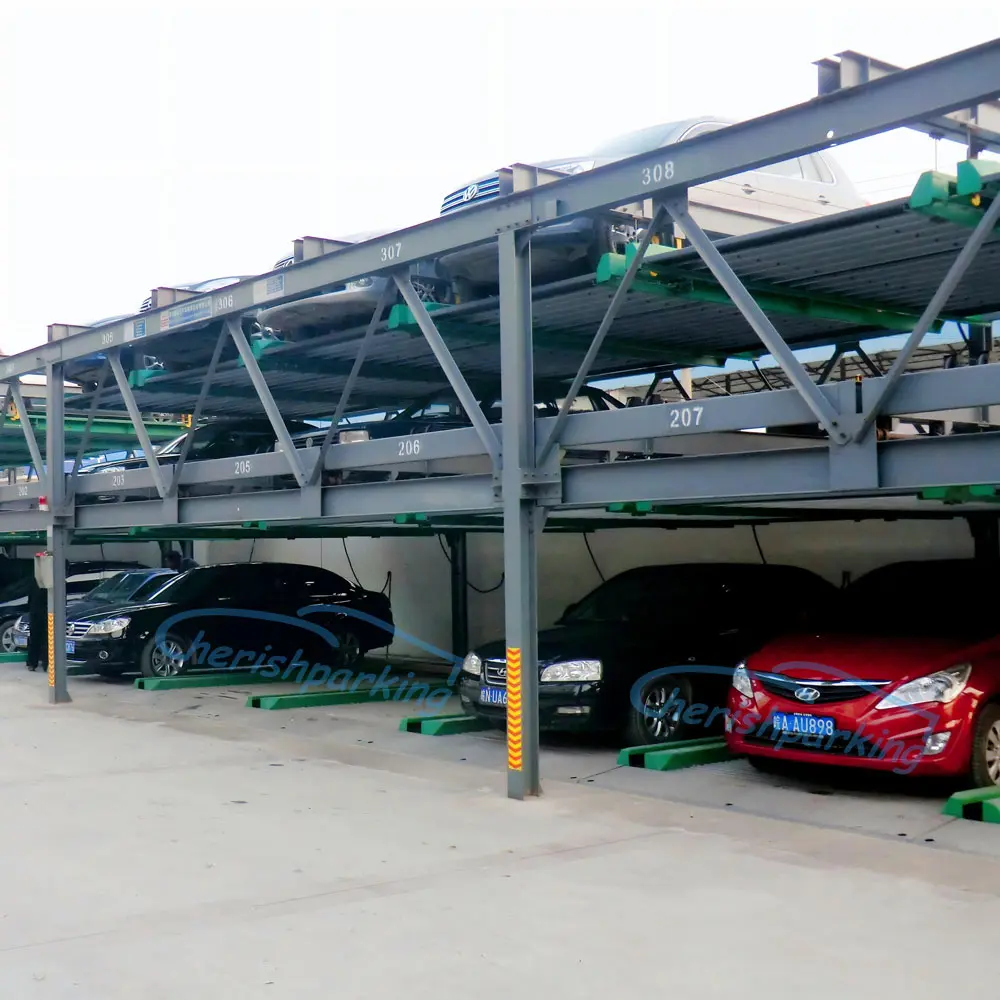

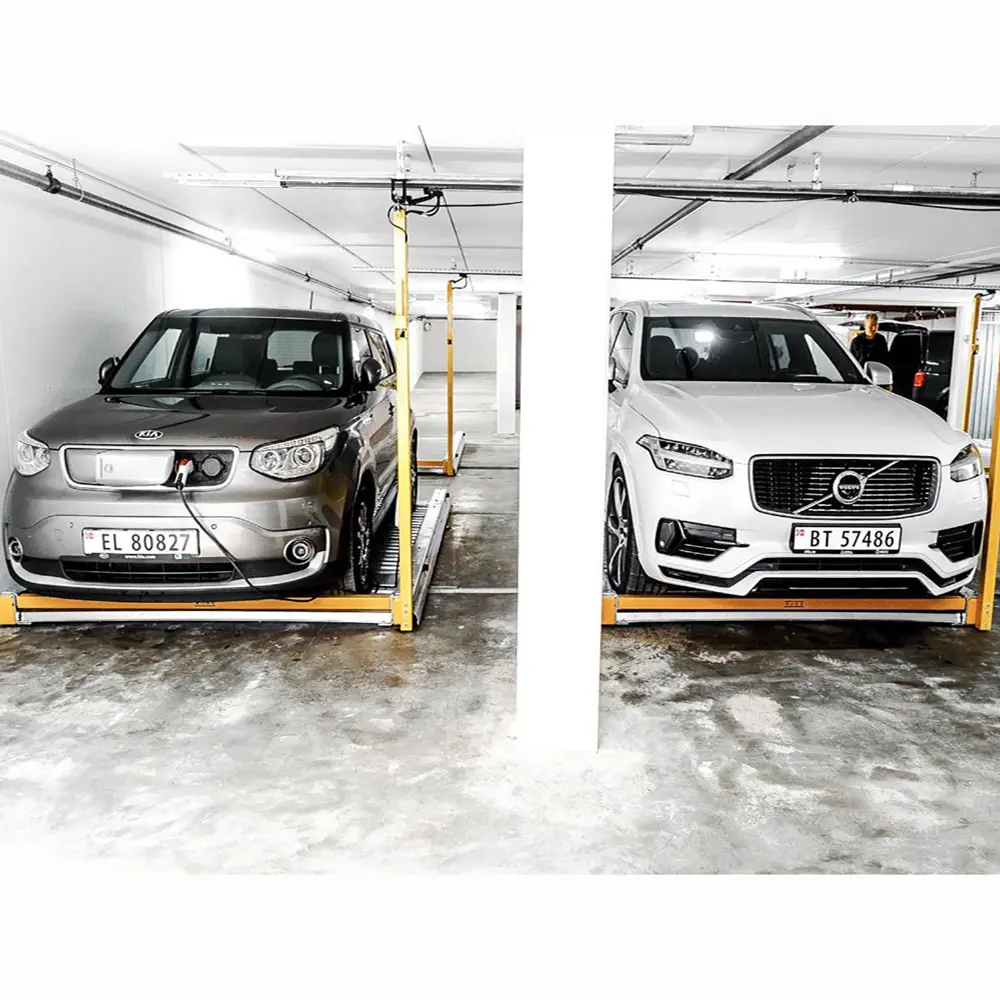

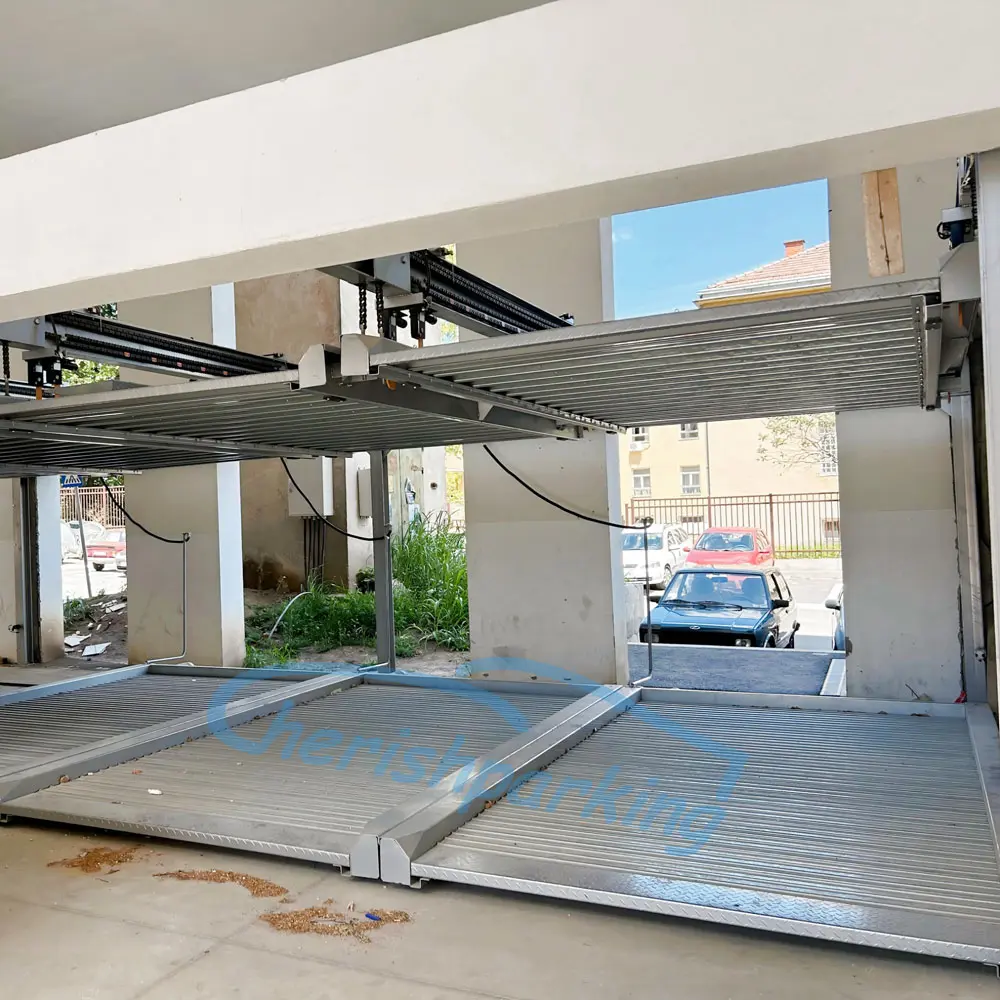

Drawing & Case
010203
