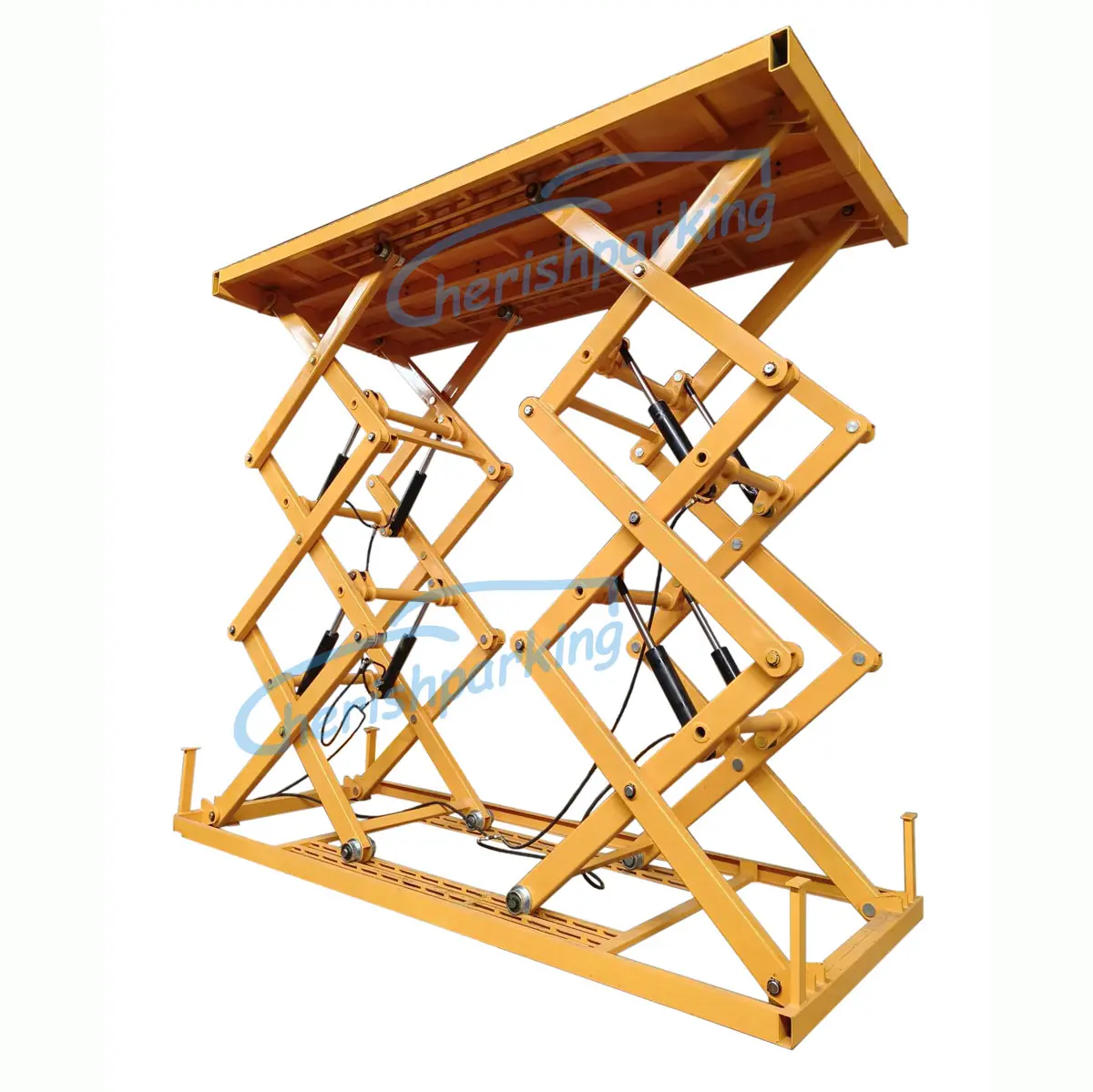

Hydraulic Scissor Car Lift Platform Elevator Pit Vehicle Hoist Table

Scissor - type Car Elevator, customizable and installed in a pit. Obviously, the concrete ramps with large footprints and high costs are gradually failing to meet modern demands. The scissor - type car elevator is one of the perfect alternatives, boasting features such as a small footprint, high safety, low maintenance requirements, and flexible arrangements. In parking lots and car dealerships where it's impossible to set up an entrance ramp, or when ramps pose risks during snowy or inclement weather, the CSL (Scissor - type Car Elevator) can be a lifesaver. It can solve various cross - floor transportation problems with a load capacity of up to 5 tons. Moreover, it also proves extremely useful in warehouse complexes or production facilities for goods loading and unloading.

    Products Feature

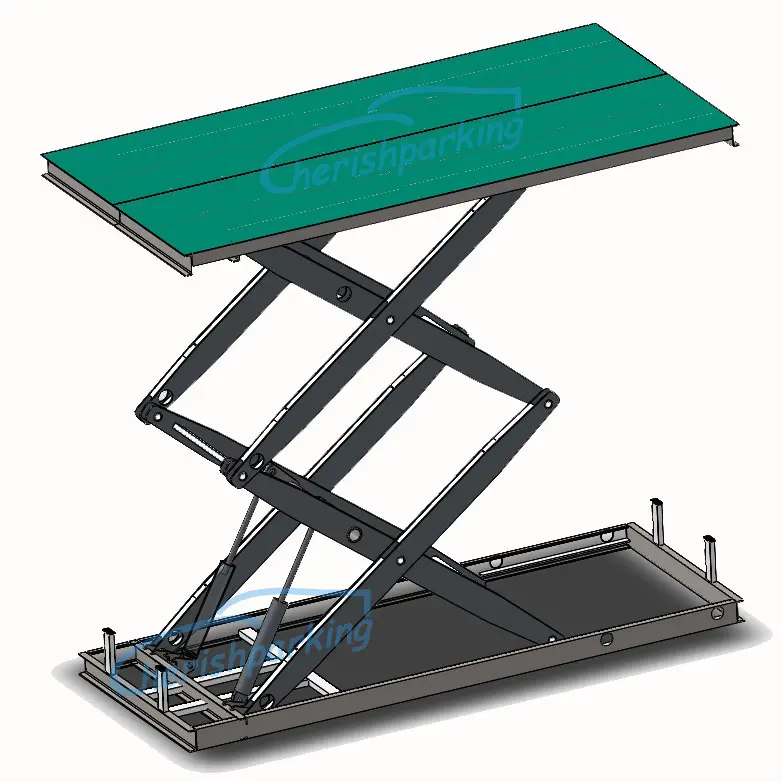

    products-feature-1
    - Single - platform design, exclusively used for lifting vehicles or goods.

    - Hydraulically powered with dual cylinders, ensuring stable and reliable operation.

    - Platform load - bearing capacity: up to 5000 kg, capable of handling heavy - duty loads. - Platform dimensions: reaching up to 6000 mm in length and 5000 mm in width, providing a spacious area for loading.

    - Multiple stop levels can be configured, with a maximum travel distance of 10 m, meeting diverse vertical transportation requirements.

    - Call - on - demand function available on all stop floors, offering great convenience for users.

    - Completely hidden from view once it descends to the bottom, maintaining a clean and unobstructed appearance of the area.

    - A foundation pit is essential under all circumstances to ensure the proper installation and operation of the equipment.
    - High - level safety features combined with simple operation, making it user - friendly and reliable.

    - Pre - assembled structure for easy installation, reducing installation time and effort.

    - Finely finished powder coating, not only enhancing the aesthetic appearance but also providing excellent protection against corrosion.

    - Optional remote control is available, adding more flexibility to the operation.

    - Ideal for vehicle transportation between floors, such as from the ground floor to upper floors or the basement, enabling seamless vertical movement of vehicles.

    - Well - suited for car dealerships and car rental companies, meeting their specific needs for efficient vehicle handling and storage.

    - Can be optionally deployed outdoors, providing flexibility in application scenarios to adapt to different business environments.

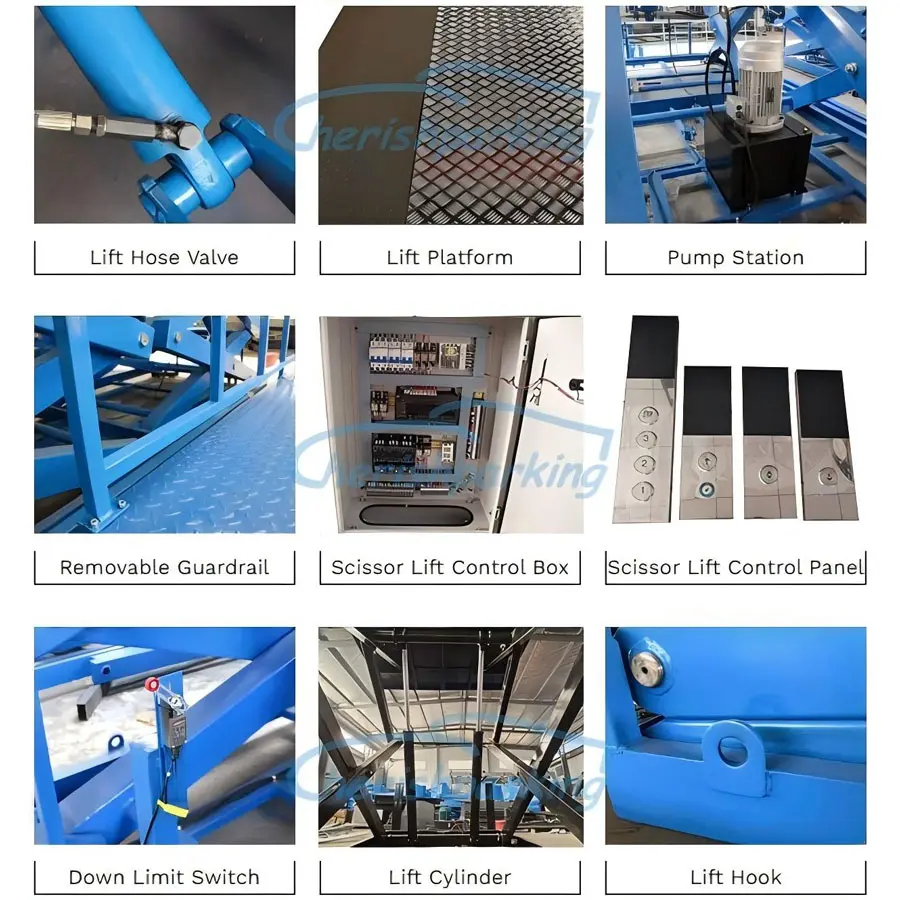

    products-features-2

    Specifications

    Model No. CSL-3
    Max Lifting Capacity 5000kgs
    Max Lifting Height 10 meters
    Usable Platform width Customized
    Overall Height Customized
    Overall Length Customized
    Overall Width Customized
    Power Supply/Motor Capacity 380V, 50Hz, 3Ph, 5.5Kw
    Lock Release Electric Release
    Drive Mode Hydraulic Drive

    Drawing & Case

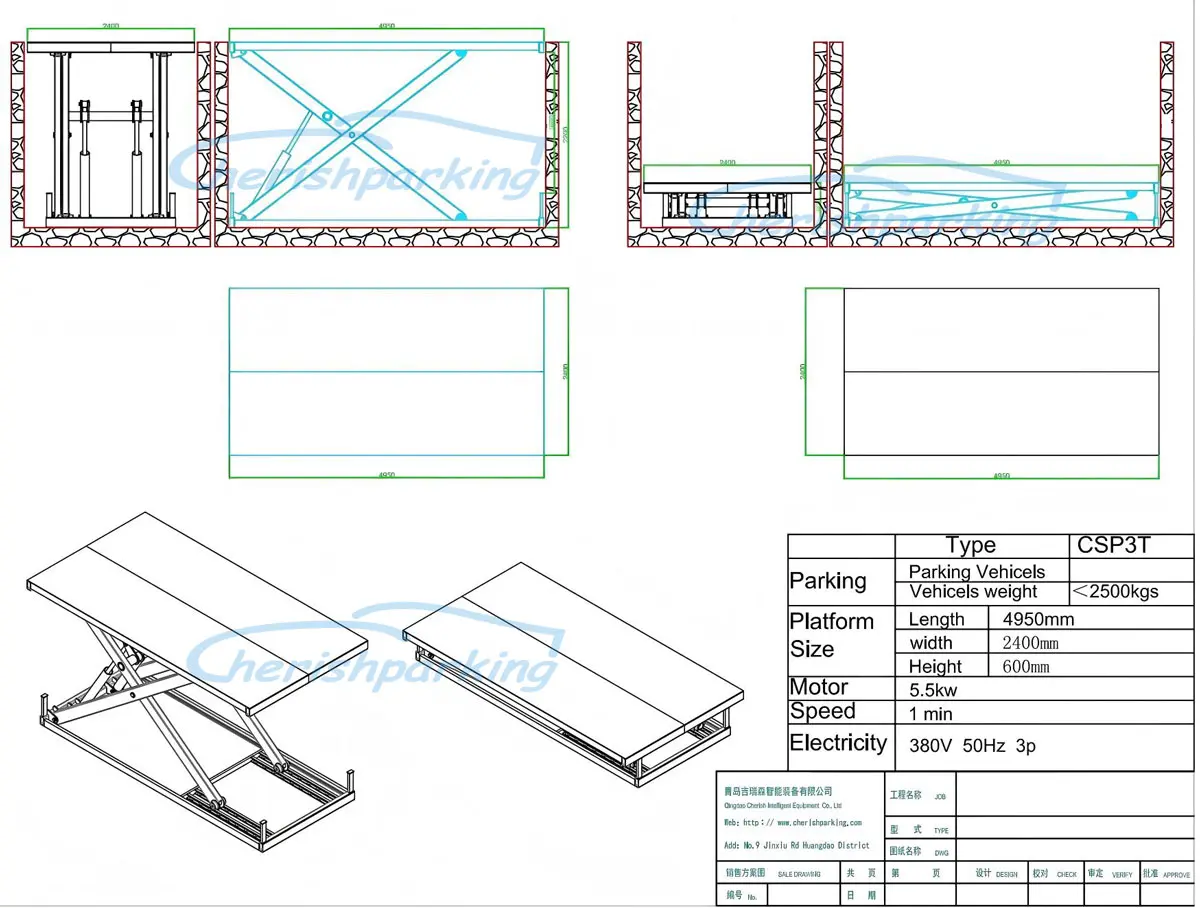

    drawing

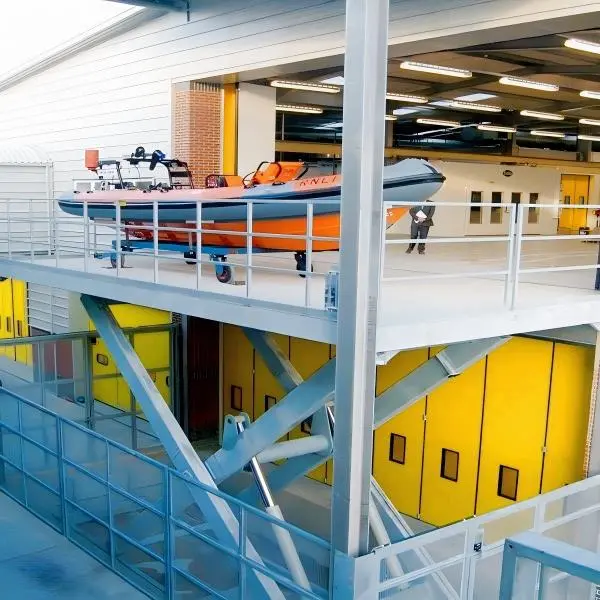

    cases 1

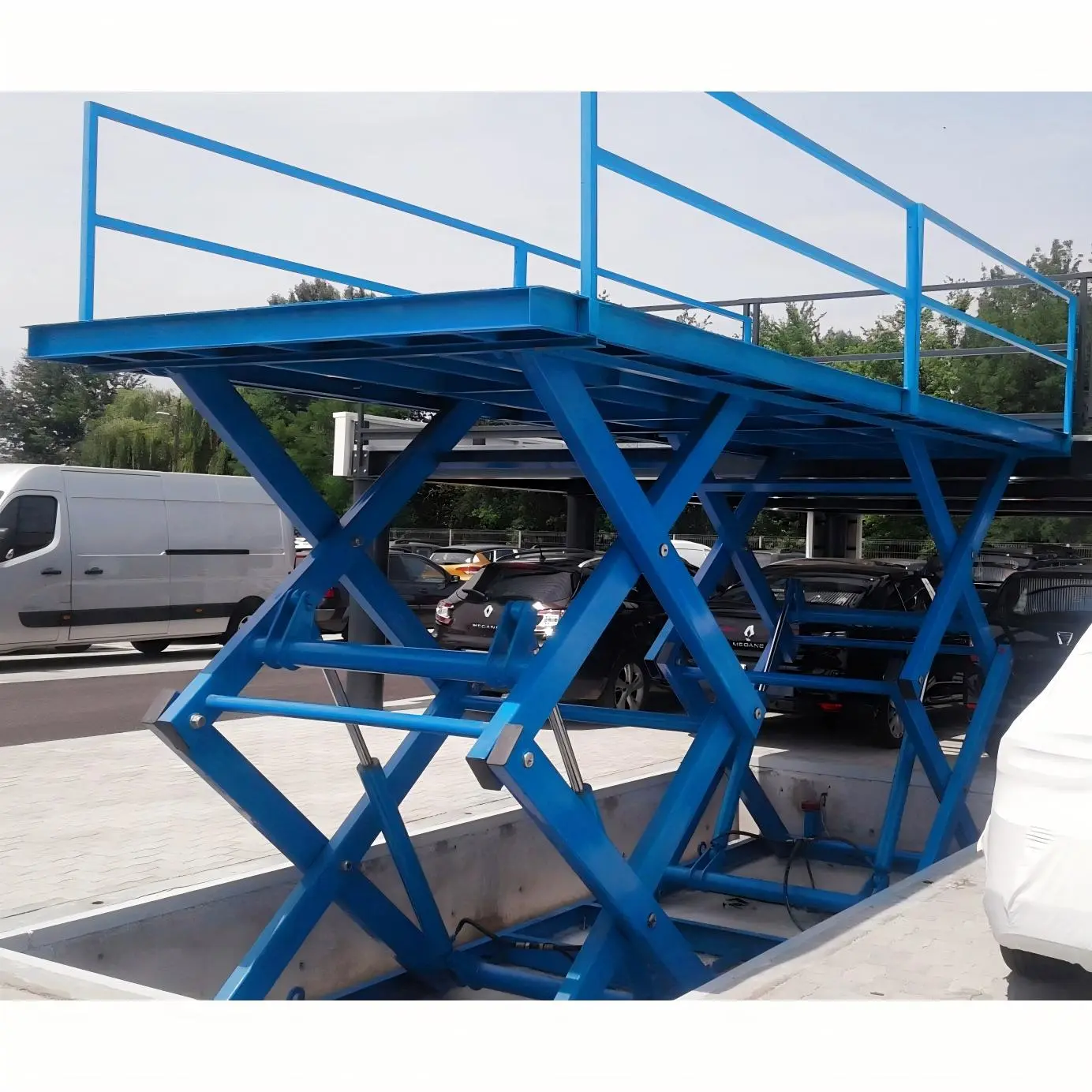

    cases 2

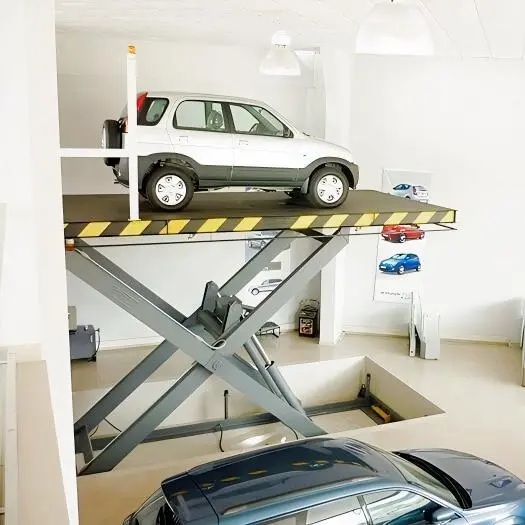

    cases 3
