Parking Lift
01
Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist
Products Feature
● Parking solutions for basement garages in residential and commercial buildings.
● The galvanized wave plate, paired with diamond plates, provides a better parking experience.
● It is directly driven by dual master - slave hydraulic lifting cylinders.
● There is an independent hydraulic power unit and control panel.
● The load - bearing capacity can reach 2000 kg for sedans.
● It automatically shuts down once the operator releases the key switch.
● It is suitable for independent parking. A single platform can park two cars, and a double platform can park four cars.
● All parking levels can be accessed horizontally.
● Low operating costs. The platform is driven by gravity when descending, eliminating the need for an electric motor.
● Professional packaging and delivery. Our professional packaging, combined with an experienced logistics team, ensures that products are delivered to customers intact. The compact packaging size simplifies unloading and handling.
Specifications
| Model No. | CPL-2 | CPL-4 |
| Lifting Capacity | 2000kgs | 4000kgs |
| Lifting Height | 1885mm | 1885mm |
| Usable Platform width | 2237mm | 4502mm |
| Overall Height | 4270mm | 4270mm |
| Overall Length | 5078mm | 5078mm |
| Overall Width | 2696mm | 4776mm |
| Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw | |
| Lock Release | Electric Release | |
| Drive Mode | Hydraulic Drive + Chain | |

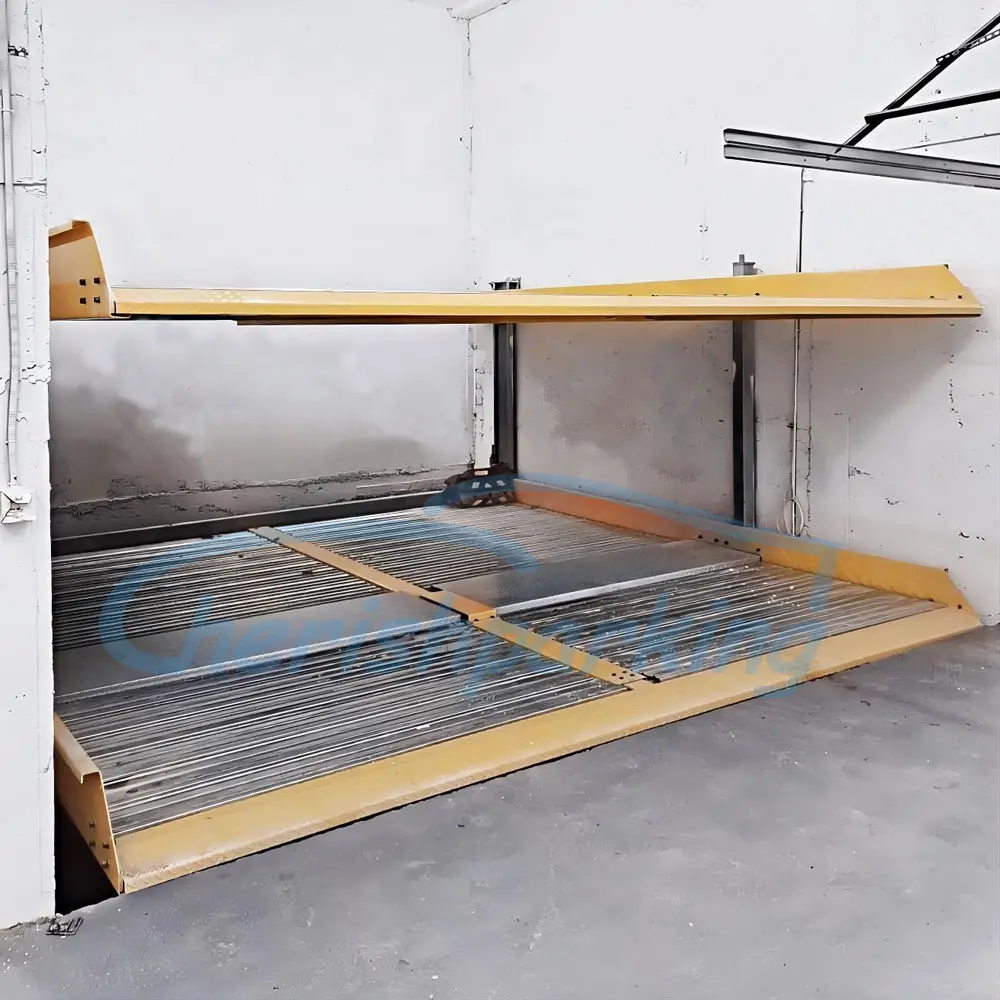

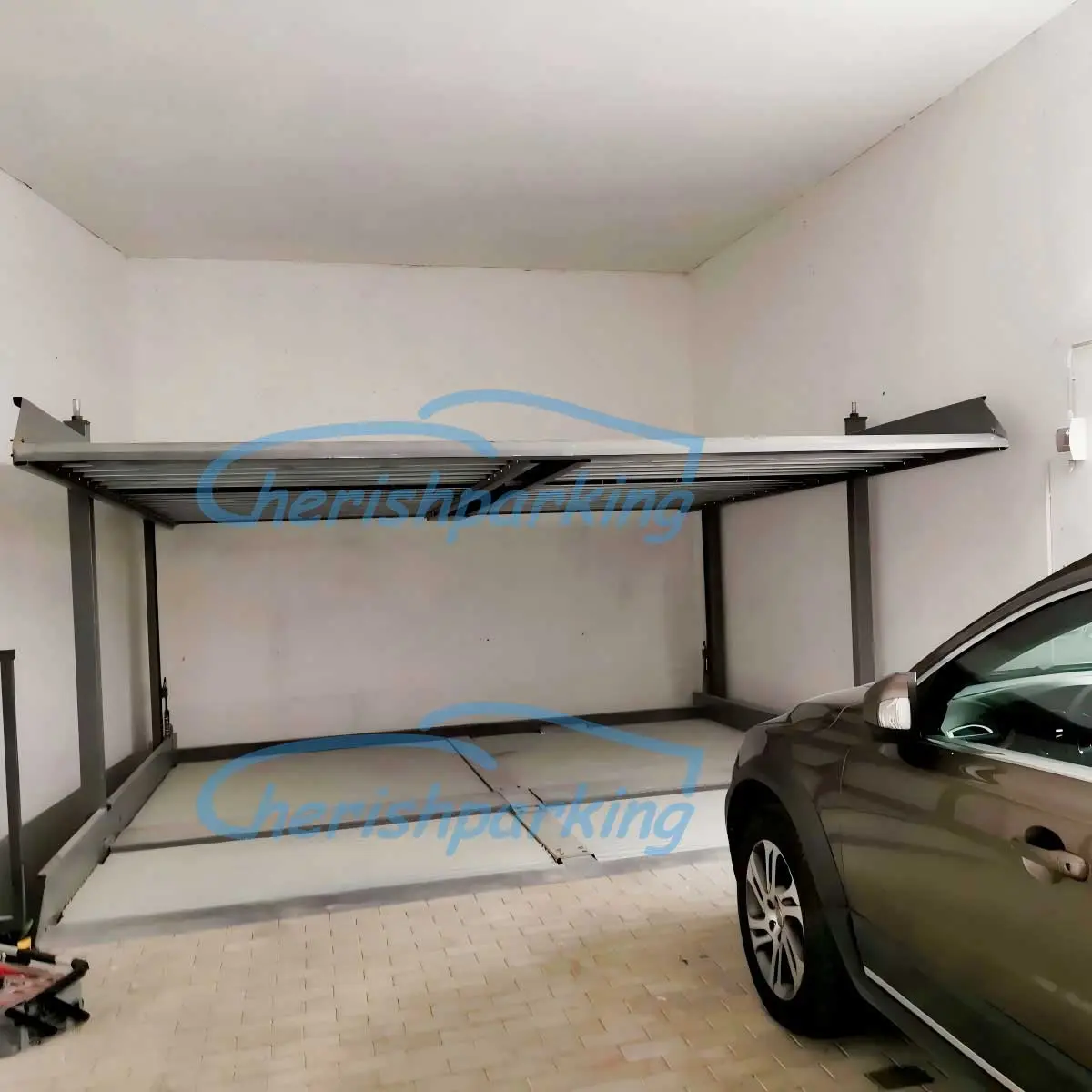

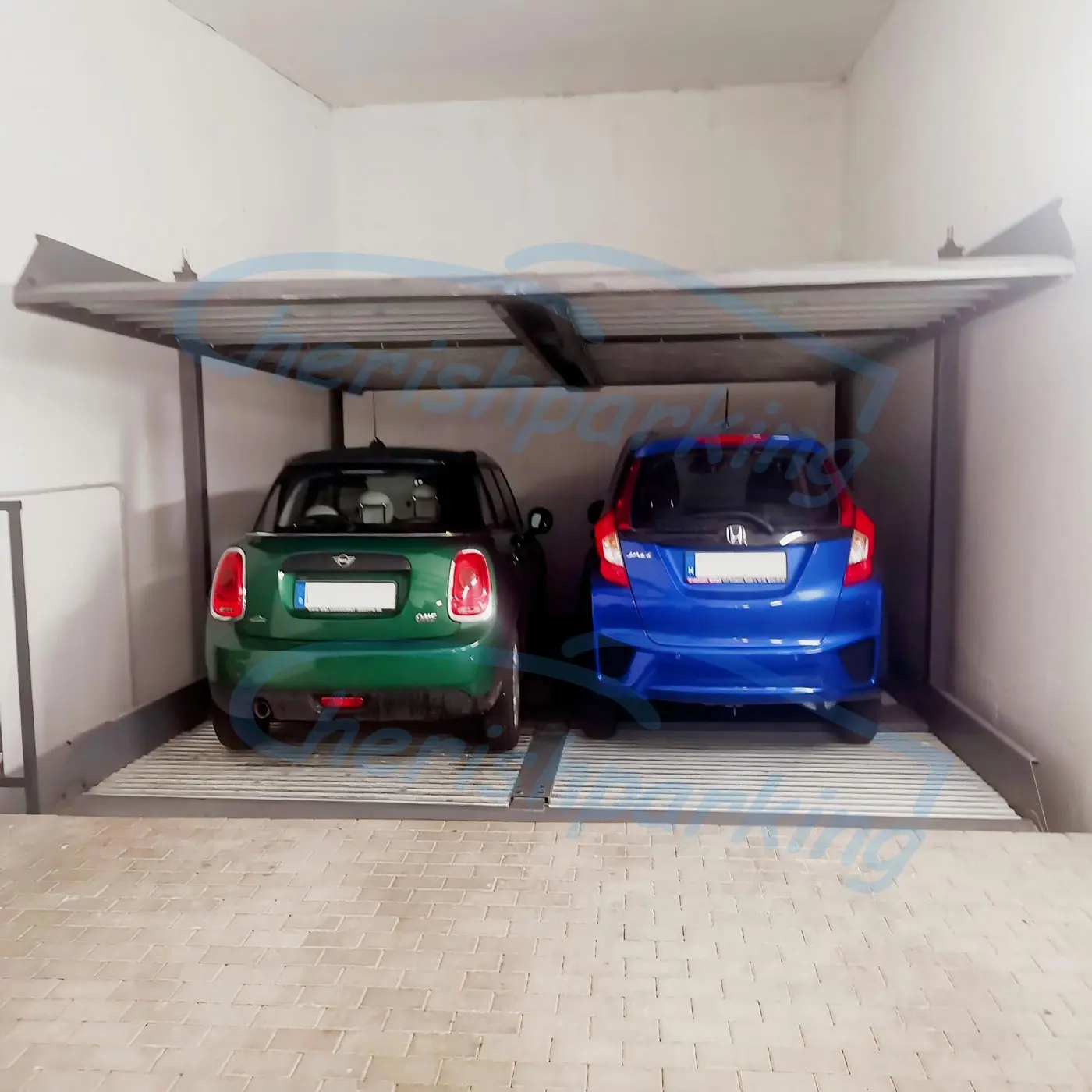

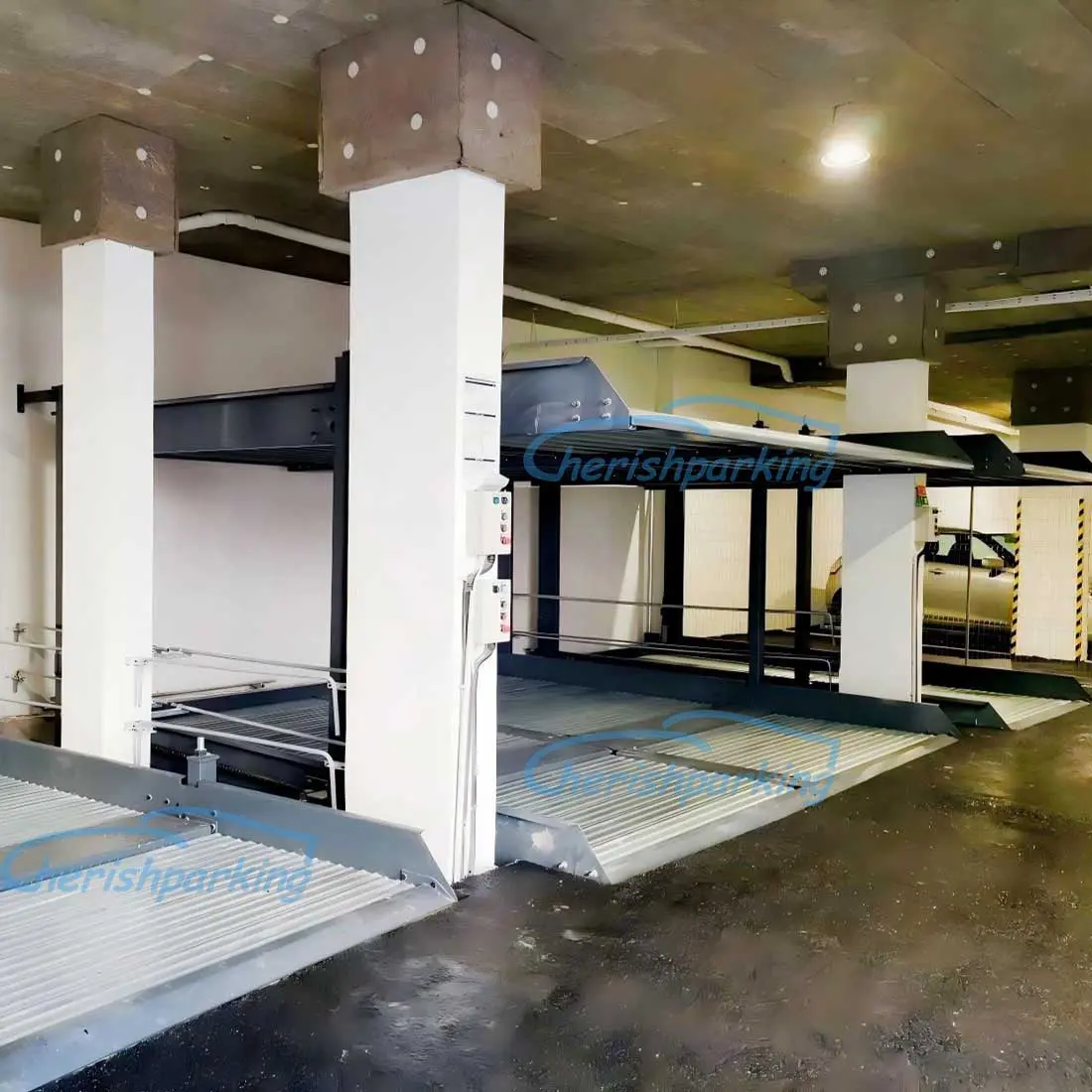

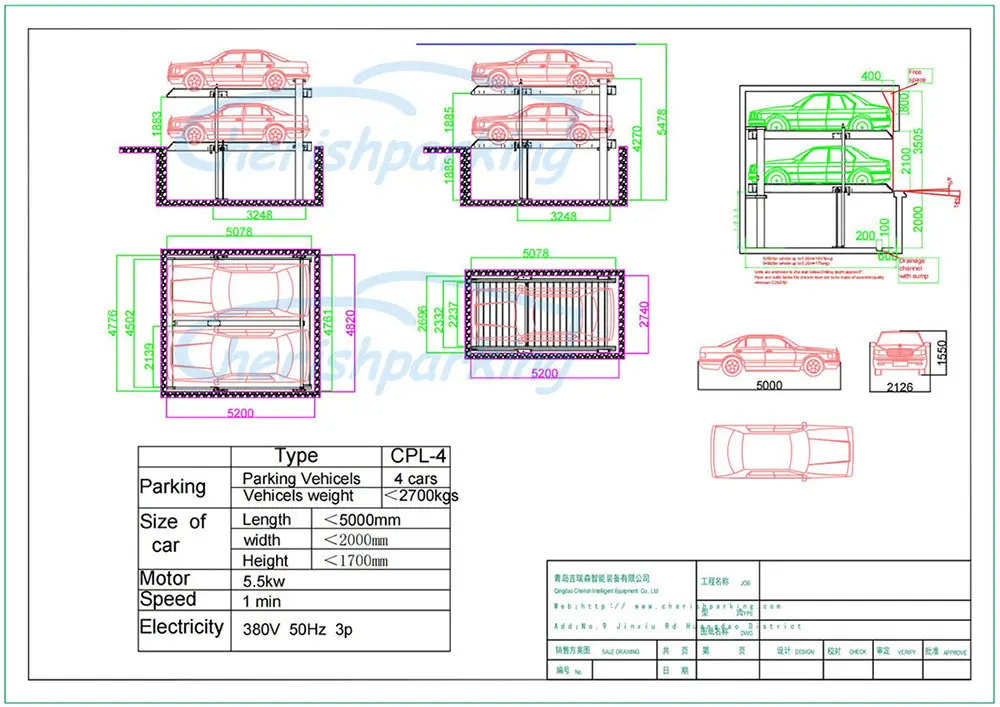

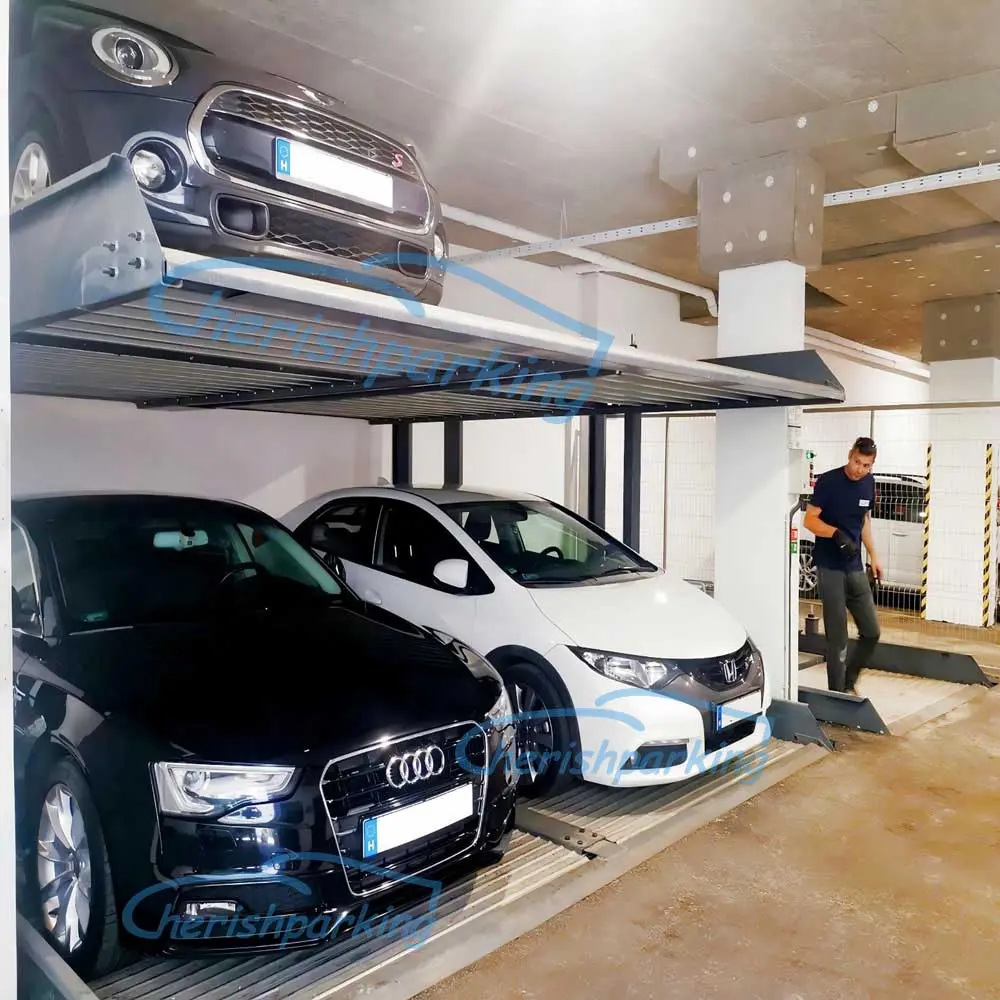

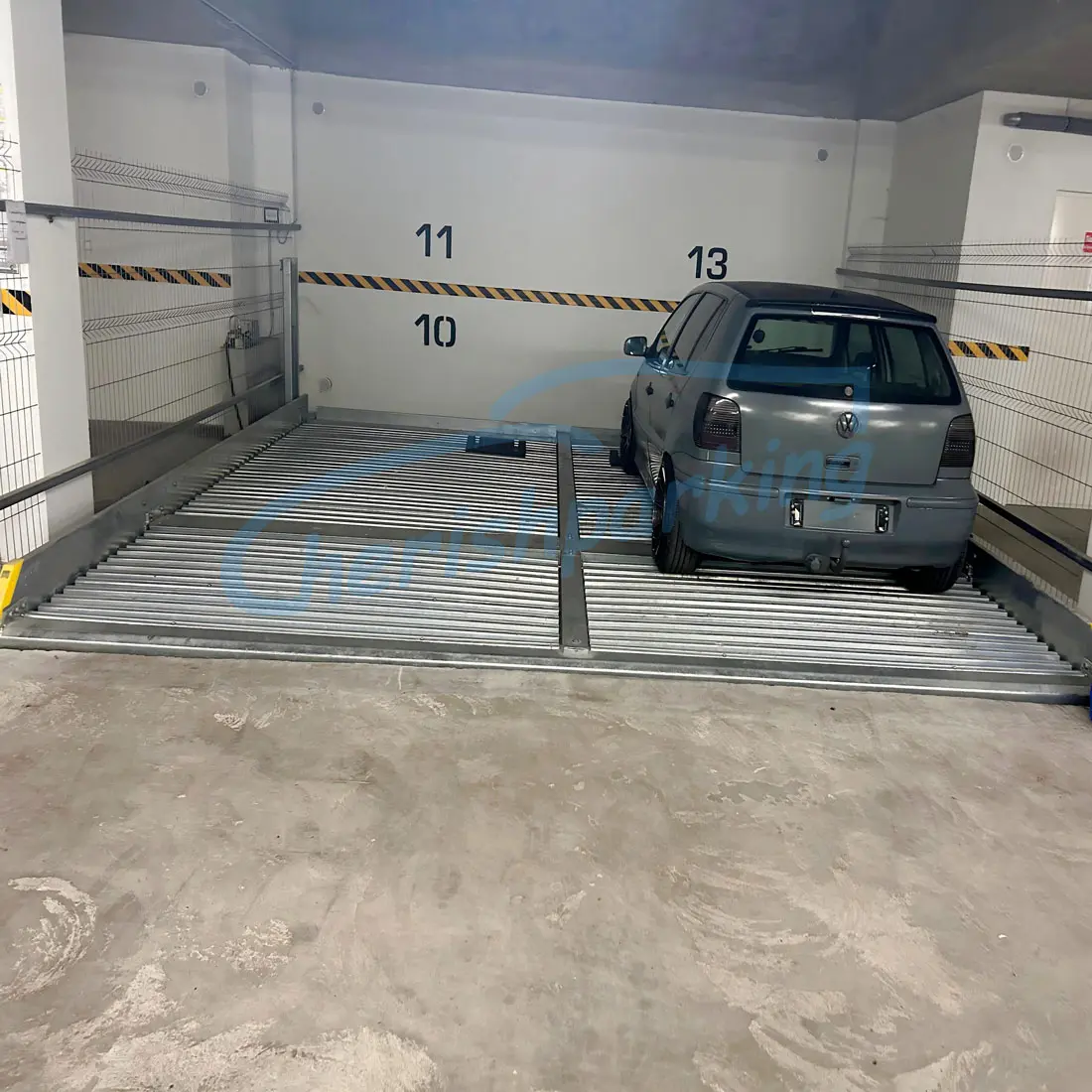

Drawing & Case
010203
