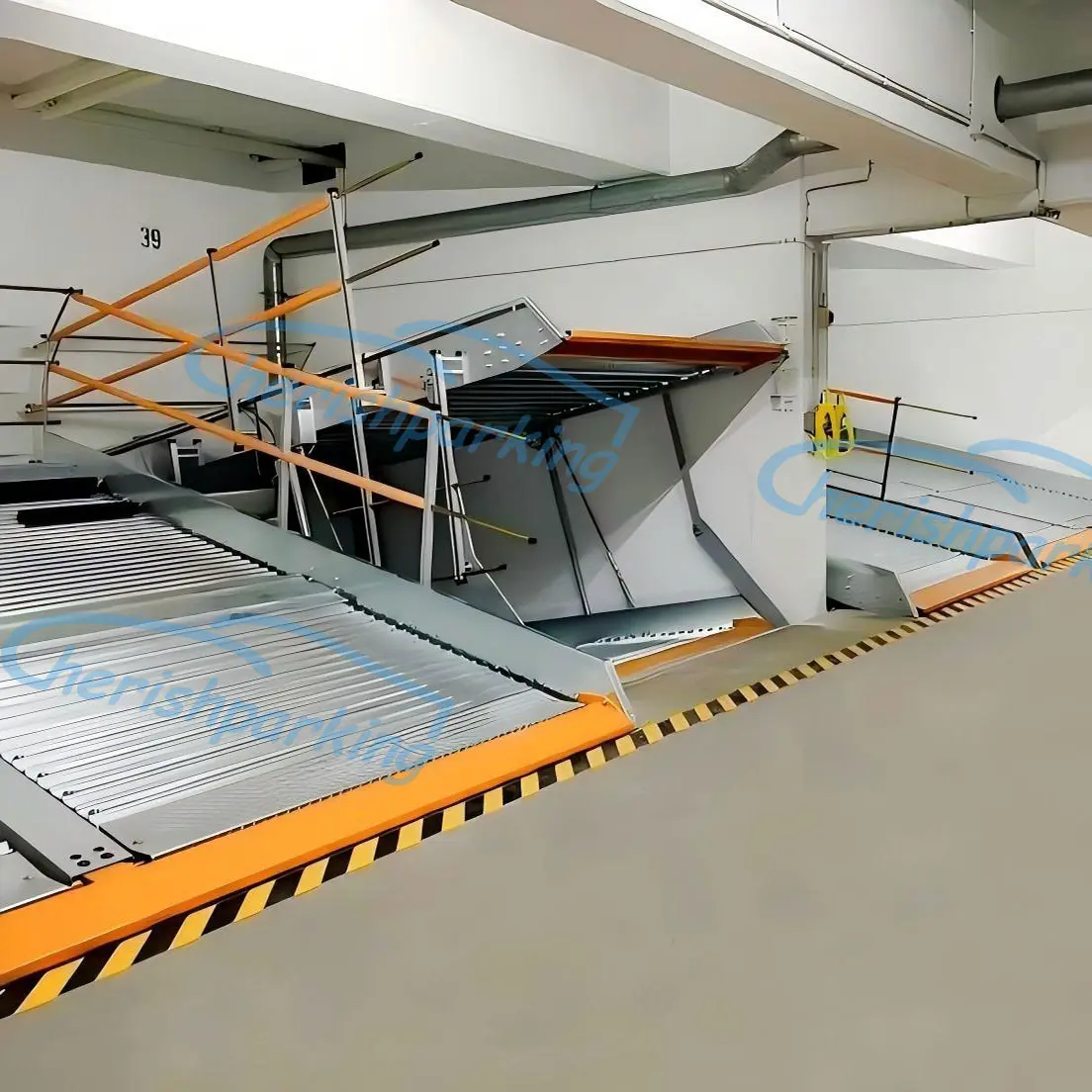

Hydraulic Underground Tilting Car Elevator Vehicle Parking Storage Lift

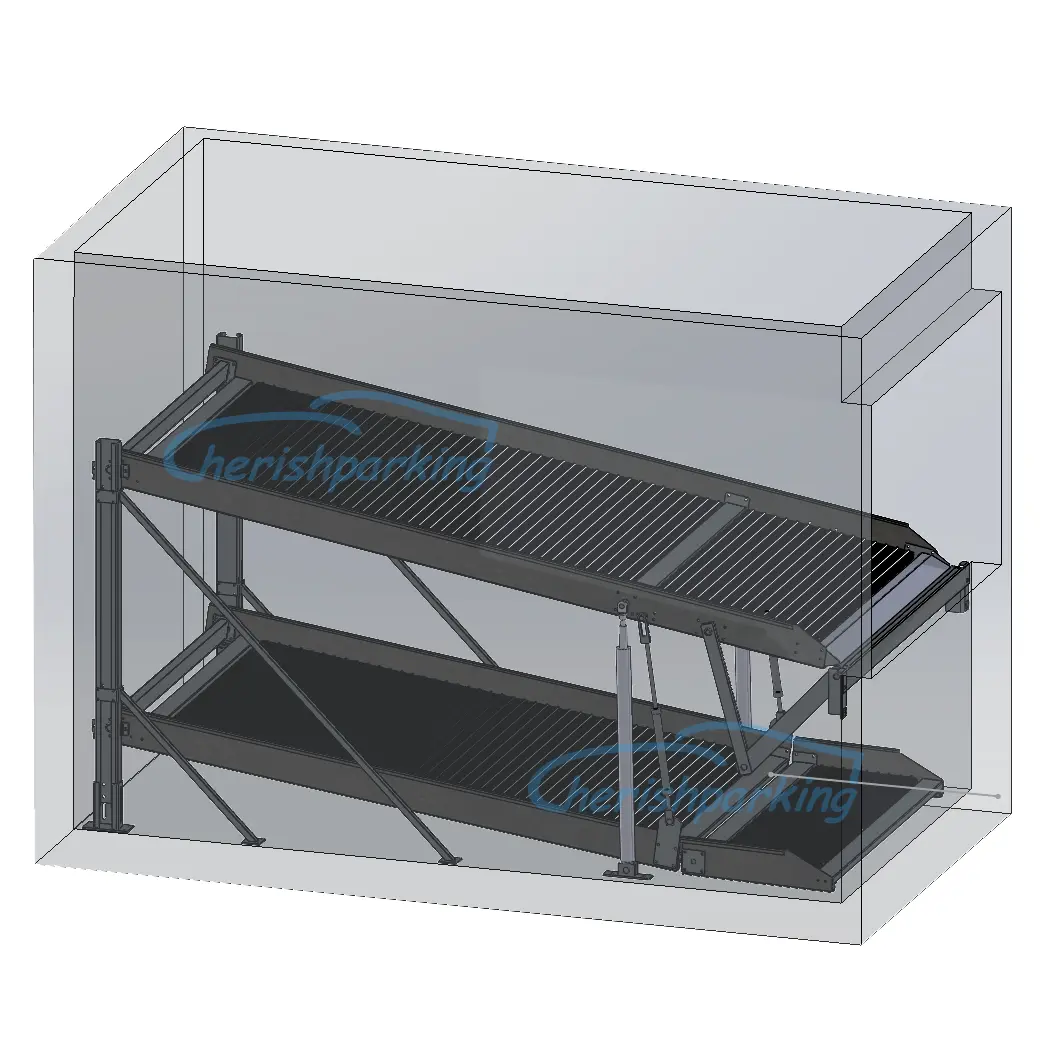

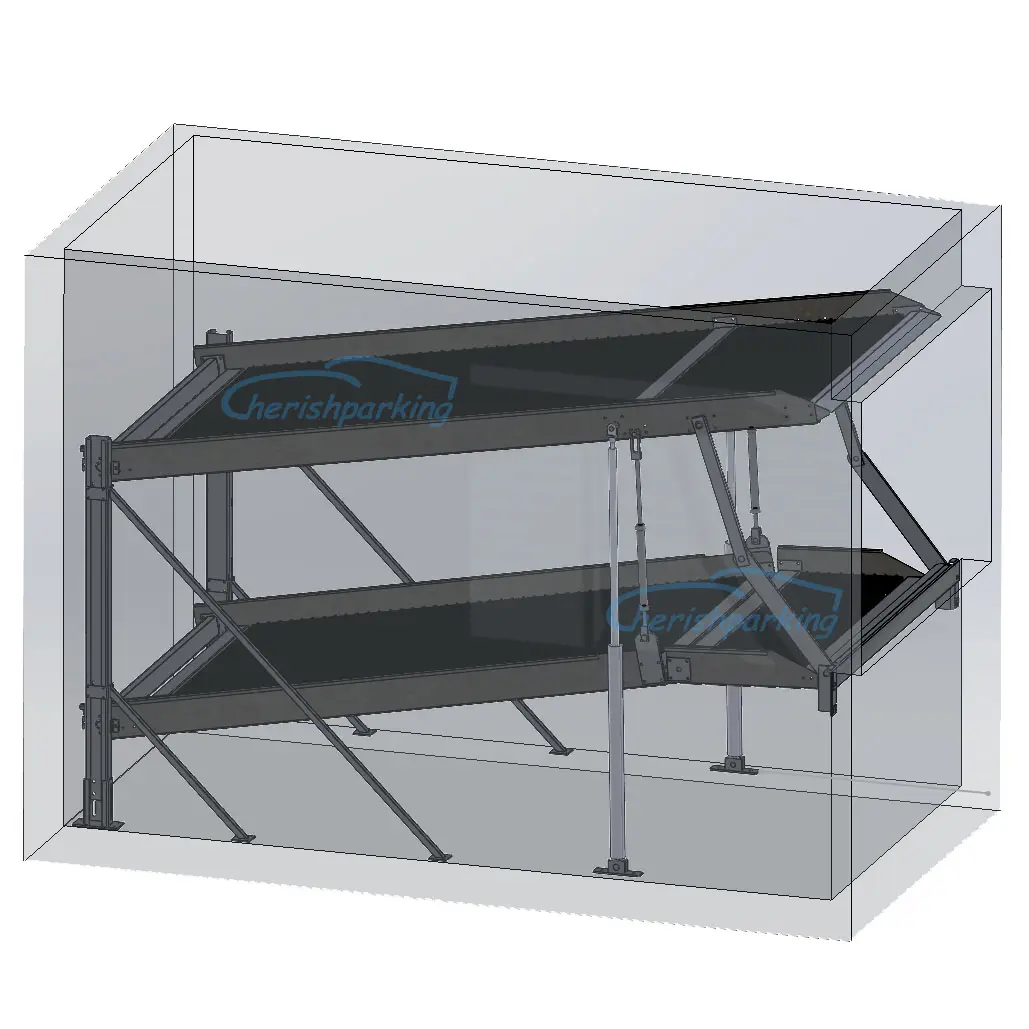

Products Feature
● The standard - type CPL - 2A Pit Car Elevator requires a remarkably shallow pit depth, ranging from merely 1500 to 1600mm, which is a significant advantage in space - constrained installations.
● It can accommodate a wide variety of vehicles with ease. The ideal vehicle dimensions it can handle are a height of 1450 - 1500mm and a length of 4900 - 5000mm.
● The standard - type usable platform width measures 2200mm, providing ample space for vehicle maneuvering.
● Each parking space is designed with a robust load - bearing capacity of 2000 kg, making it suitable for most sedans on the market.
● Additionally, all parking levels are designed with a slightly inclined access, ensuring smooth and convenient vehicle entry and exit, whether it's for daily use or during peak traffic periods.
● It is directly driven by dual master - slave hydraulic lifting cylinders. Each unit is equipped with an independent hydraulic power unit and control panel.
● The load - bearing capacity for sedans can reach up to 2000 kg. Once the operator releases the key switch, the equipment automatically stops running.
● It is suitable for independent parking scenarios. A single platform can accommodate two cars, while a double platform can park four cars.
● All parking levels can be accessed in an inclined manner.
● The operating cost is low. When the platform descends, it is driven by gravity, eliminating the need for an electric motor.
● Professional packaging and delivery services are provided. Our professional packaging, along with an experienced logistics team, ensures that the products are delivered to customers in perfect condition. The compact packaging size simplifies the unloading and handling processes.
Specifications
| Model No. | CPT-2 | CPT-4 |
| Lifting Capacity | 2000kgs | 4000kgs |
| Lifting Height | 1750mm | 1750mm |
| Usable Platform width | 2330mm | 4502mm |
| Overall Height | 4580mm | 4580mm |
| Overall Length | 5300mm | 5300mm |
| Overall Width | 2700mm | 4900mm |
| Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw | |
| Lock Release | Electric Release | |
| Drive Mode | Hydraulic Drive + Chain | |

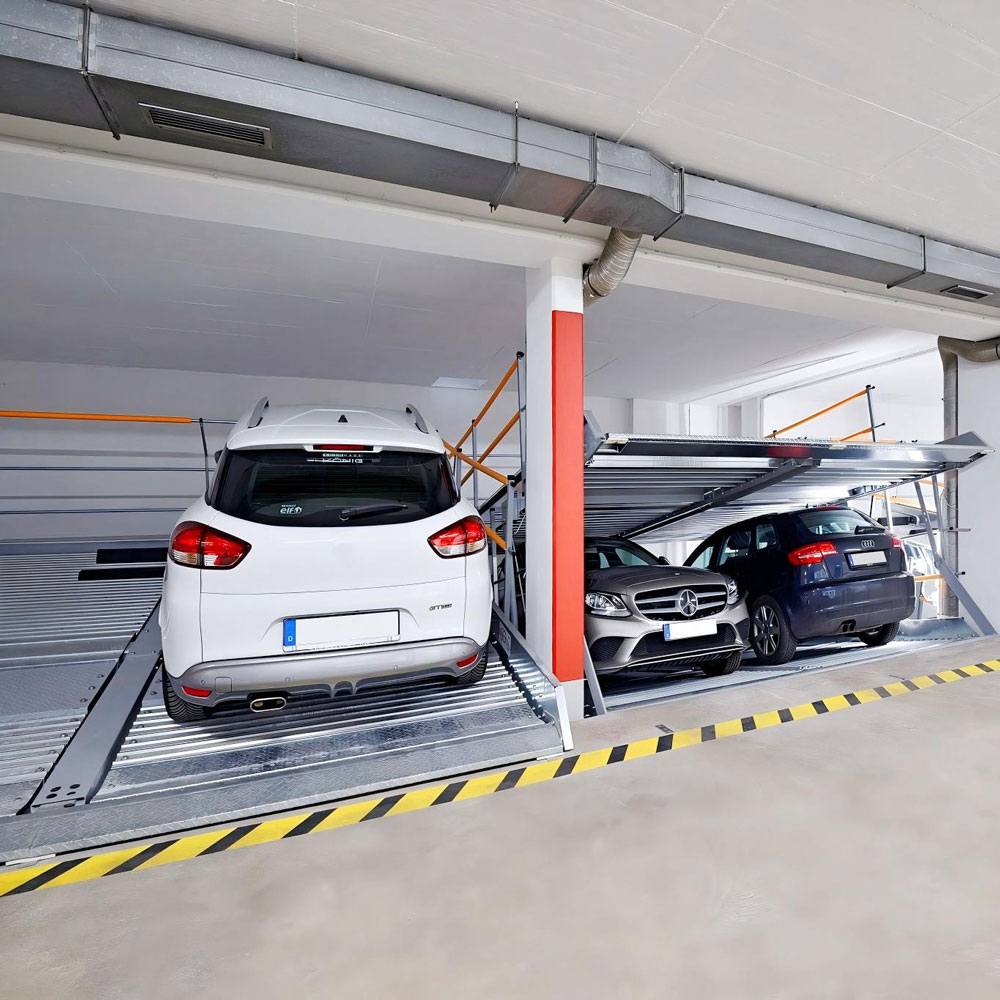

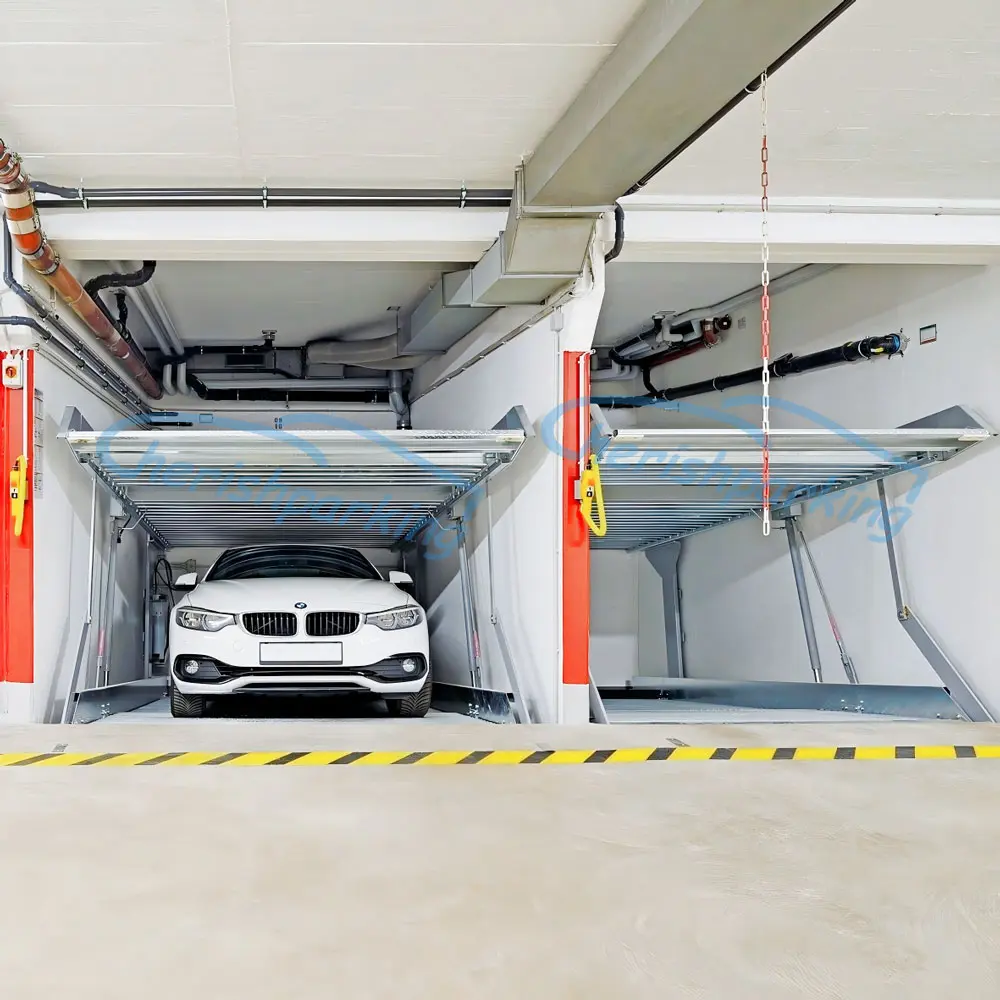

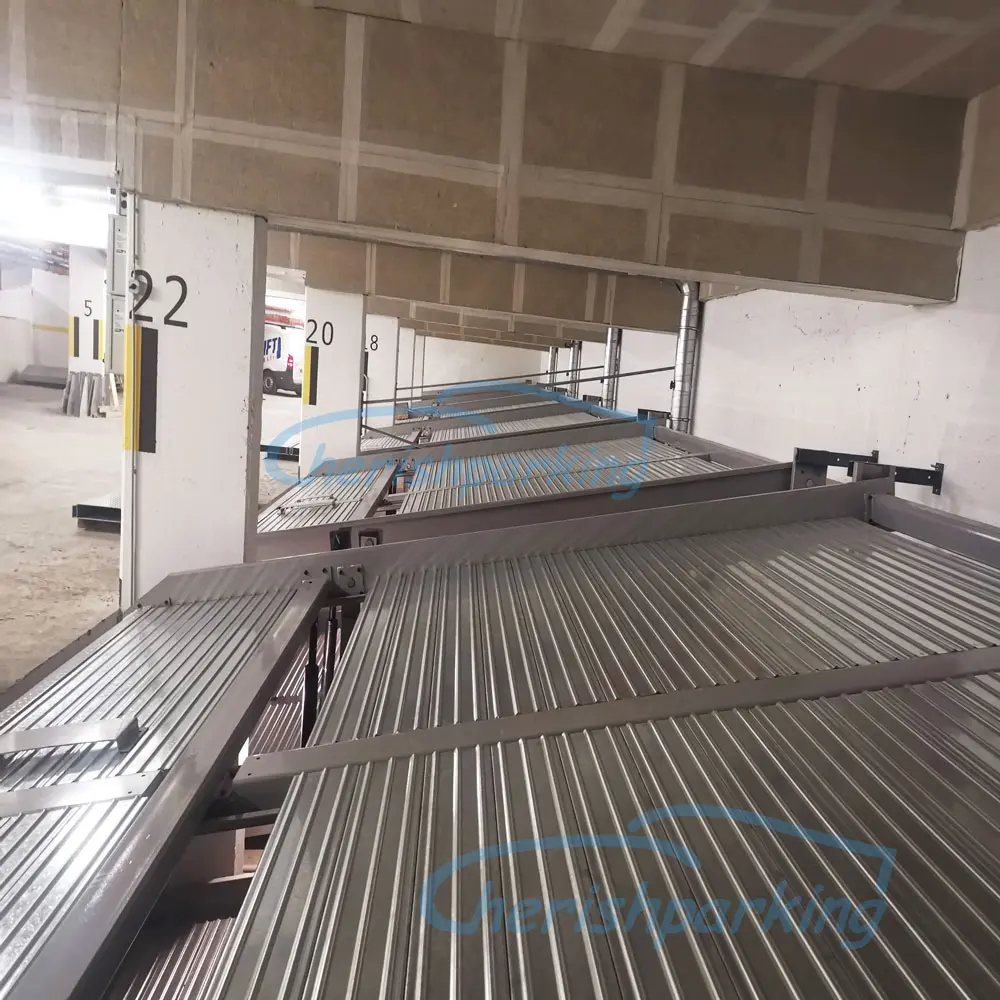

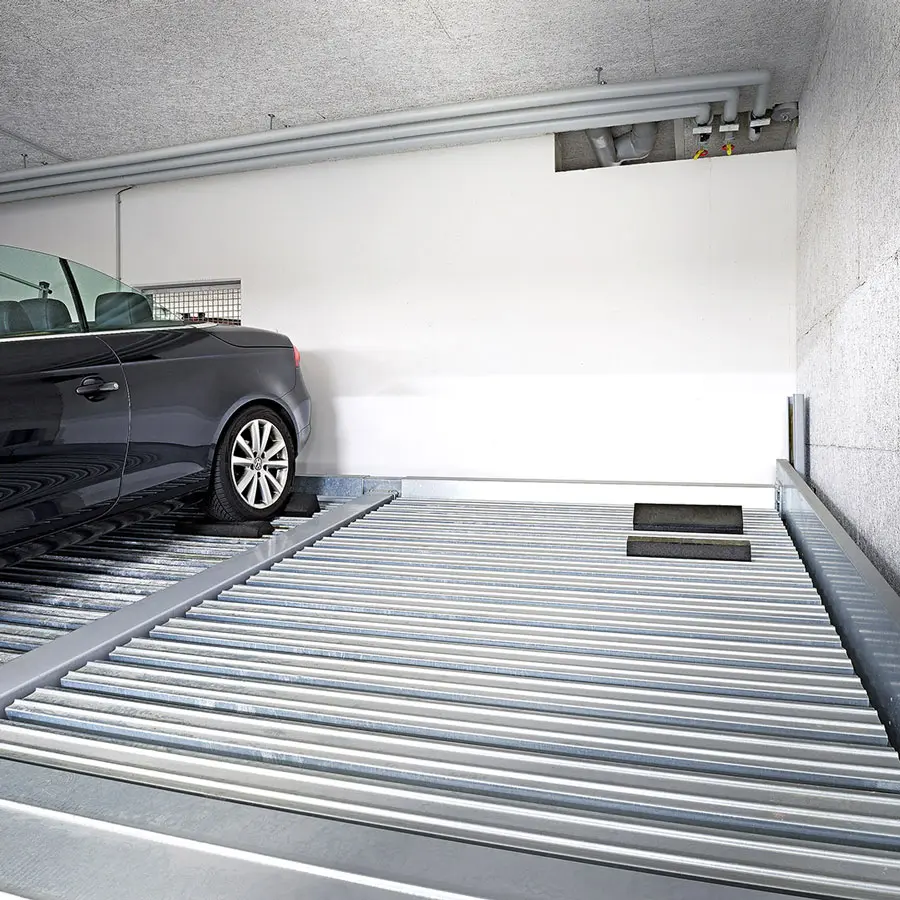

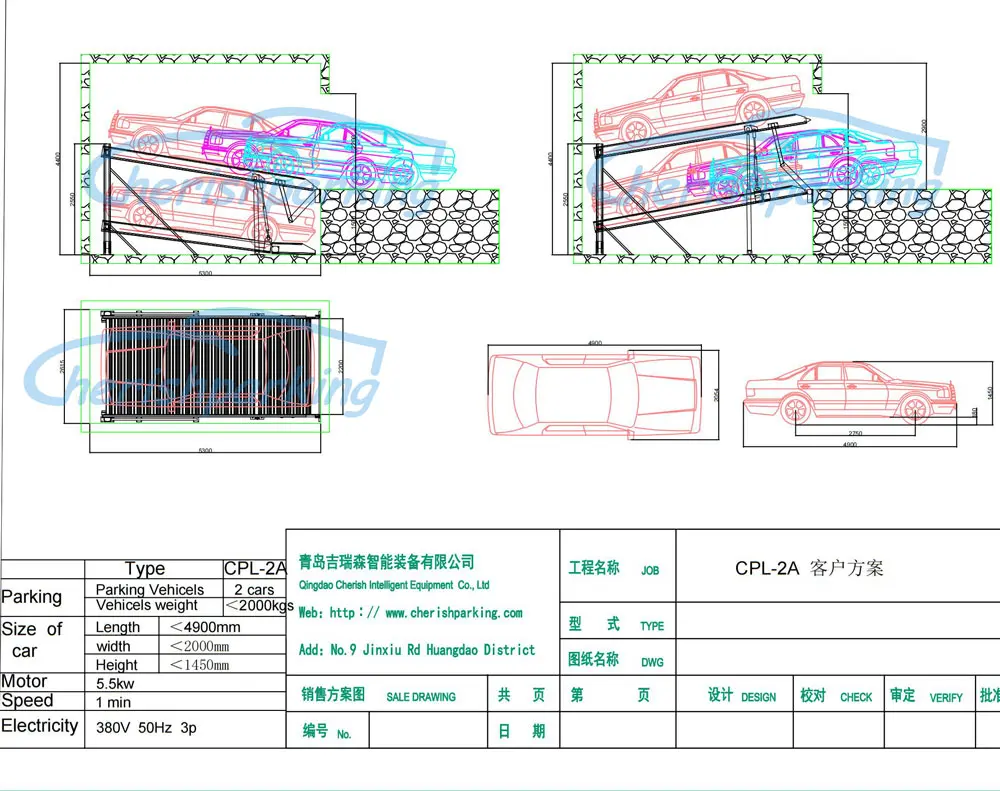

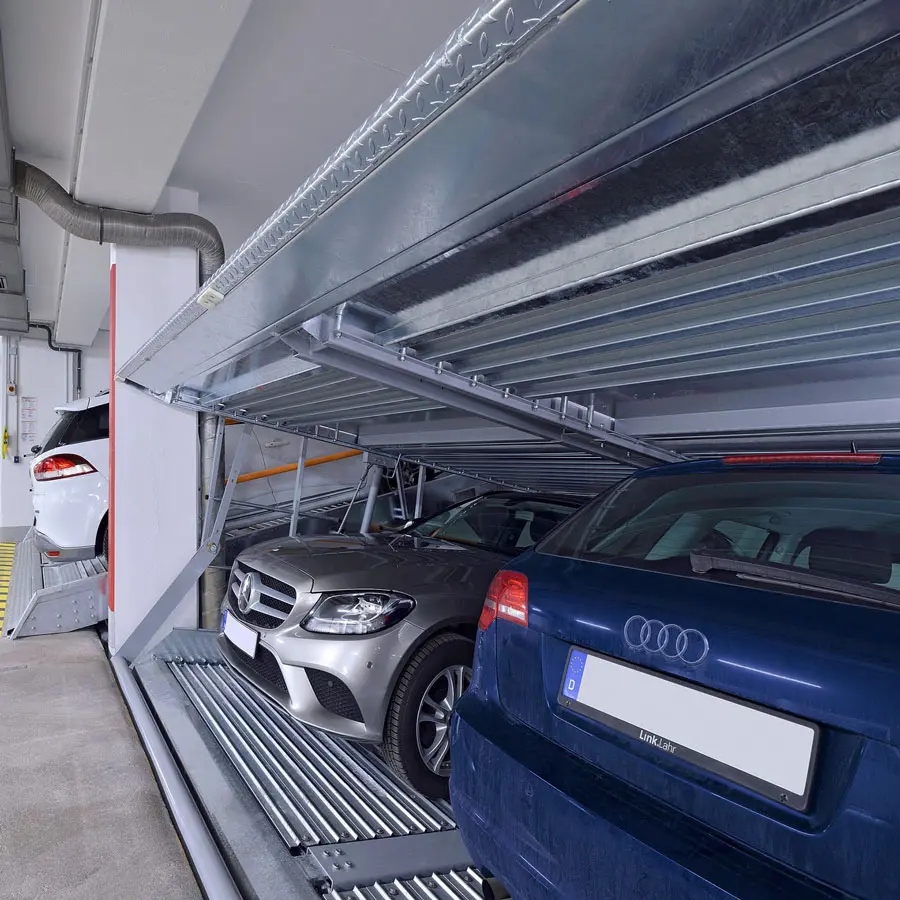

Drawing & Case
010203
