New Triple Level Stacker Triple Car Parking Lift
Products Feature
· It perfectly triples the number of parking spaces, efficiently optimizing parking capacity.
· The upper layer has a load - bearing capacity of 2000 kg, the lower layer 3000 kg, and the bottom layer has no restrictions, enabling it to accommodate various vehicles.
· With a short - column design, it is suitable for areas with low ceilings, solving the problem of limited vertical space.
· It can be installed indoors or outdoors with a rain shelter, providing flexibility in installation environments.
· Specifically designed for concrete - surface installation, it ensures a stable foundation.
· The wide - deck platform can hold SUVs, sedans, sports cars, and vans, meeting the needs of different vehicle types.
· It is equipped with a PLC control system, enabling precise and automated operation.
· Each platform is equipped with 4 safety locks to ensure the safety of parked vehicles.
· Multiple anti - fall locks on each column add an extra layer of safety, preventing platform falls.
· The up - down key switches ensure safety by restricting unauthorized operation.
· The photo - electric induction system prevents vehicles on the lower platform from contacting the upper platform.
· Hydraulic overload protection safeguards the hydraulic components from damage caused by excessive loads.
Specifications
| Model No. | NEW CHFL4-3 Sedan | NEW CHFL4-3 SUV |
| Lifting Capacity | Ground Floor Unlimited, | Ground Floor Unlimited, |
| Lower Level 2700 kg, | Lower Level 3000 kg, | |
| Upper Level 2000 kg | Upper Level 2000 kg | |
| Ground Floor Usable Height | 1600 - 2100 mm | 2100 mm |
| Second Floor Usable Height | 1300 - 1800 mm | 2100 mm |
| Column Height | 4100 mm | 4896 mm |
| Total Length | 5750 mm | 6200 mm |
| Total Width | 3000 mm | 3000 mm |
| Usable Width | 2367 mm | 2367 mm |
| Power | 220/380V 50/60HZ 1/3Ph 2.2Kw | |
| Operation Model | Key Switch + Button | |
| Drive Mode | Hydraulic Drive + Steel Wire Rope | |

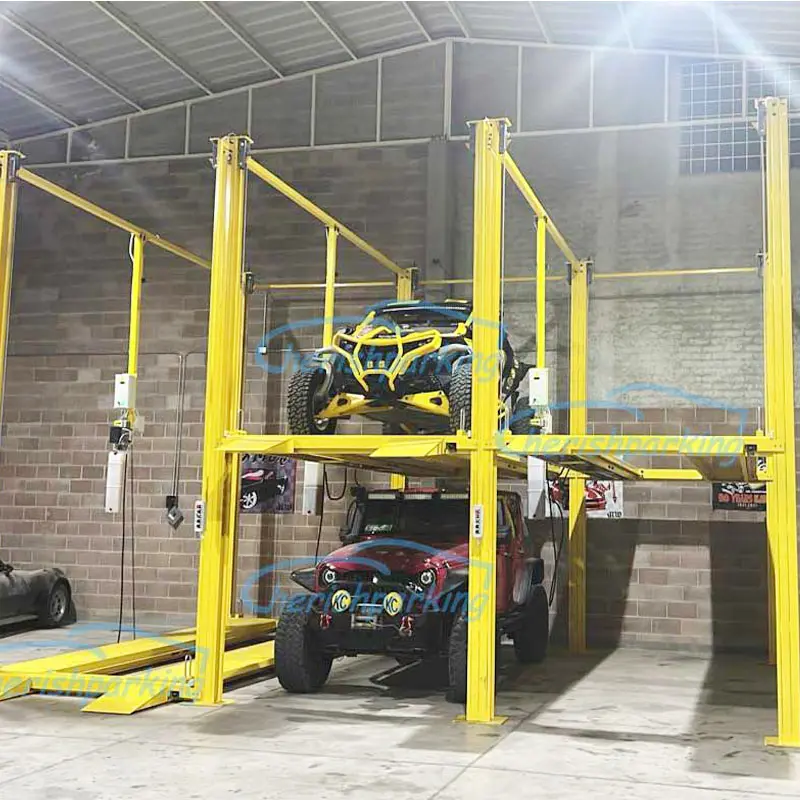

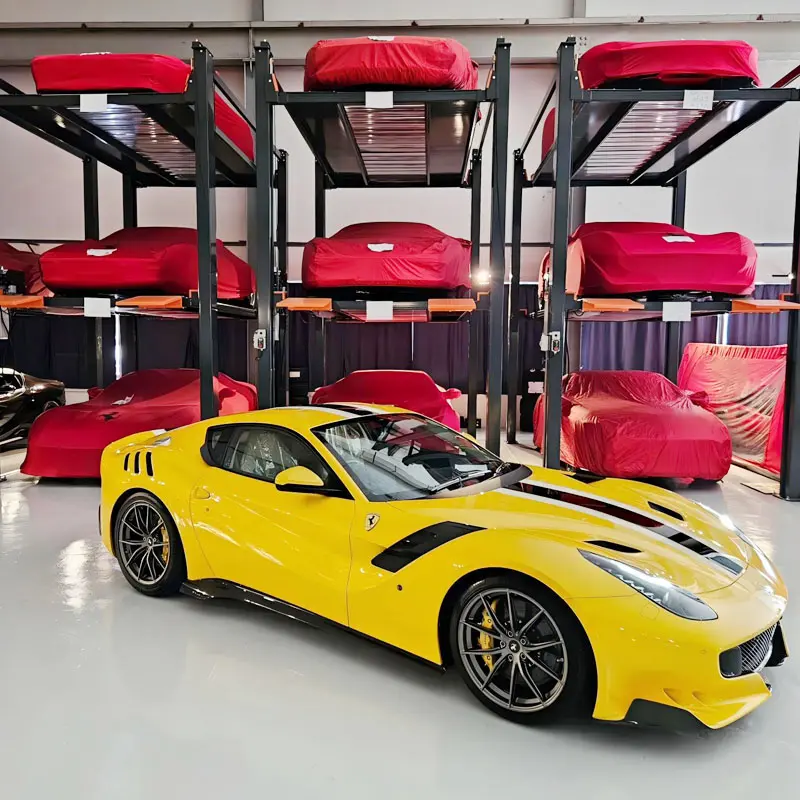

Drawing & Case
