Parking Lift
01

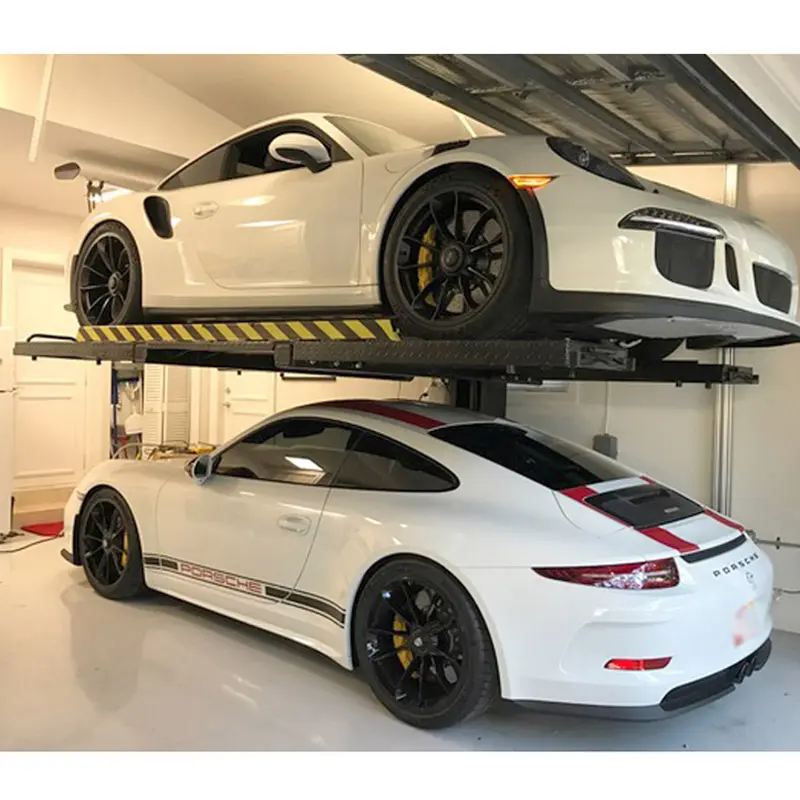

Single-Post Car Parking Lift
Products Feature
· It has a load - bearing capacity of 2000 kg, which is suitable for parking cars on the upper platform. This capacity enables it to handle most common - sized cars effortlessly.
· The unique single - column design saves space to the utmost. It's a great solution for locations where space is at a premium, whether in a compact home garage or a commercial area with space constraints.
· The H - shaped anti - slip lifting platform, with its reinforced columns and base, provides excellent stability. This design ensures the safety of vehicles during lifting and storage.
· Being of commercial grade, it can be applied in both commercial venues, like car dealerships, and home garages. It meets the diverse needs of different users.
· The low - profile approach ramp is ideal for low - chassis vehicles. It allows these vehicles to access the platform smoothly without any scraping issues.
· Multiple locking positions are available, allowing users to select the desired display height. This is especially useful for display purposes or when different access heights are required.
· High - precision hydraulic transmission ensures smooth lifting and lowering. It's easy to operate, has a low failure rate, and provides a reliable performance.
· Mechanical anti - fall locks are installed at various heights to ensure safety. They prevent the platform from falling in case of unexpected situations.
Specifications
| Model No. | CHSPL2500 |
| Lifting Capacity | 2000 kg |
| Lifting Height | 1800mm/2100mm |
| Usable Platform Width | 1950mm |
| Post Height | 3300mm |
| Overall Length | 3870mm |
| Overall Width | 2740mm |
| Power Supply / Motor Capacity | 220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw |
| Drive Mode | Hydraulic Drive + Chain |

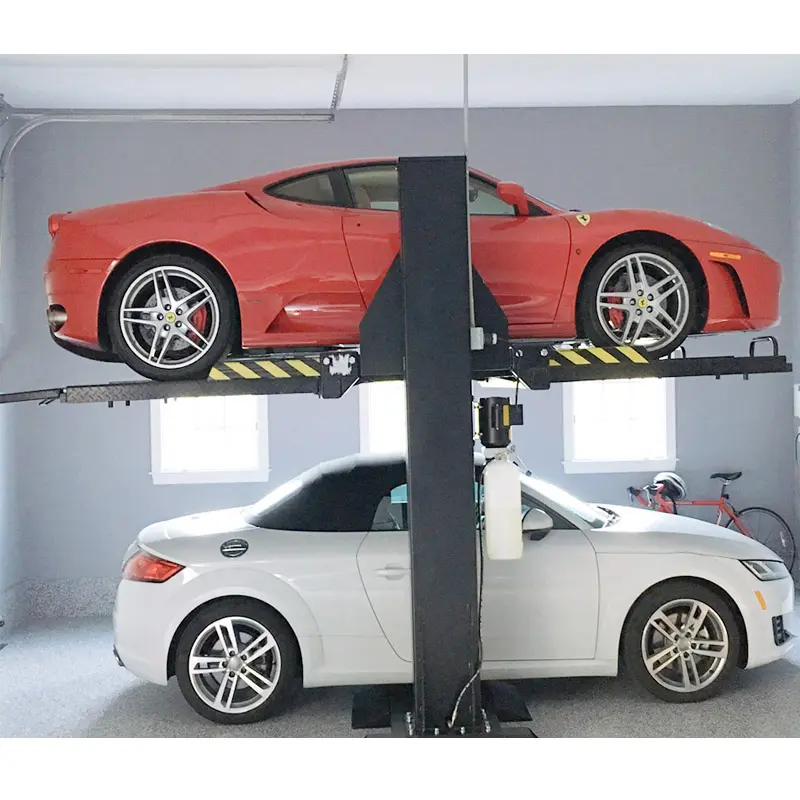

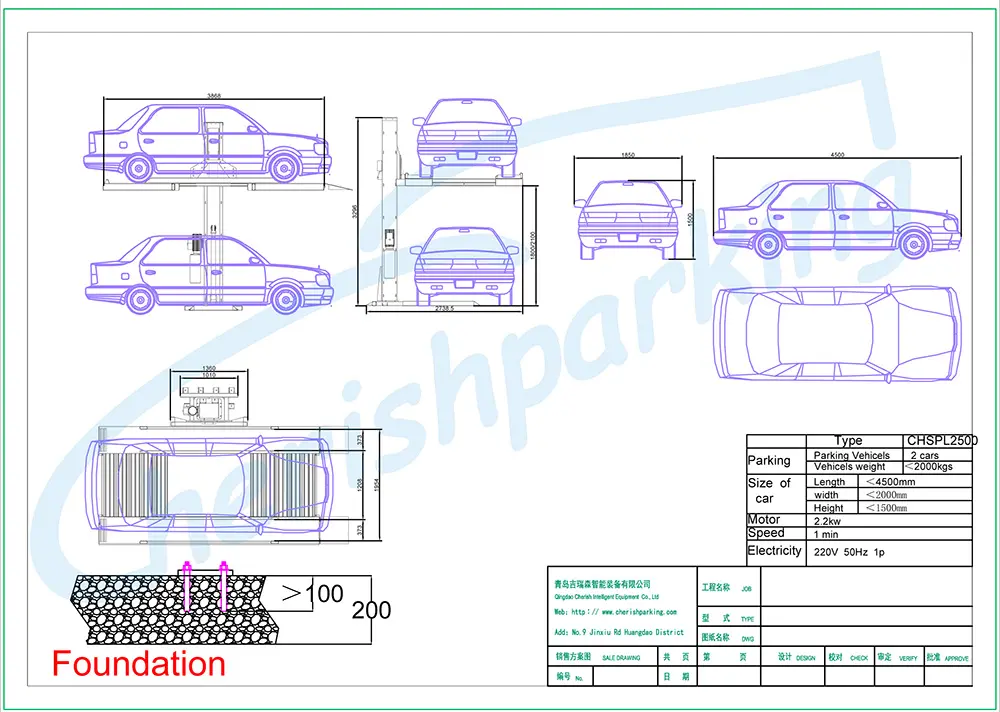

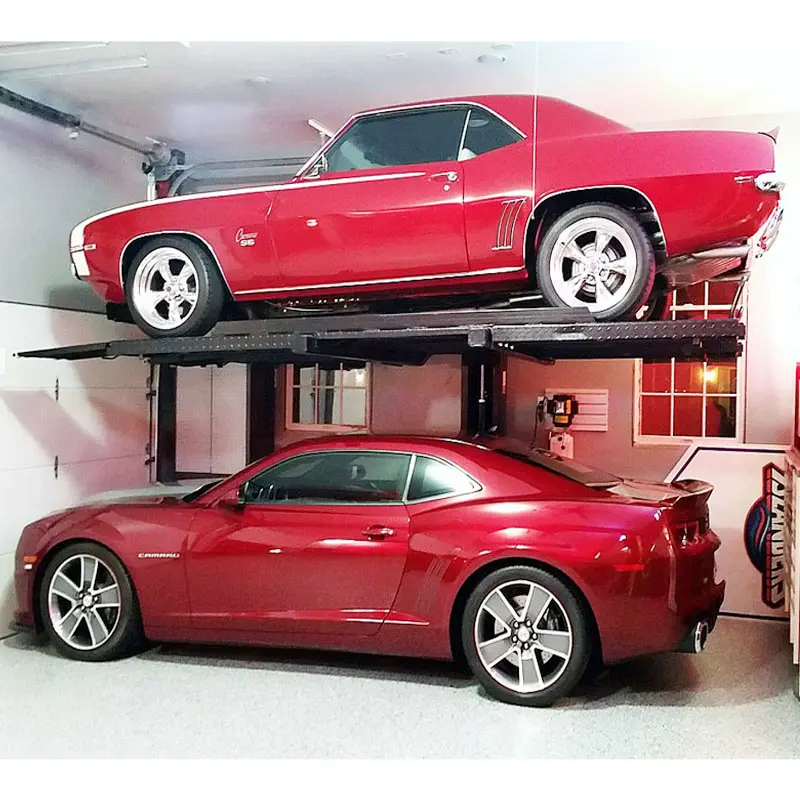

Drawing & Case
