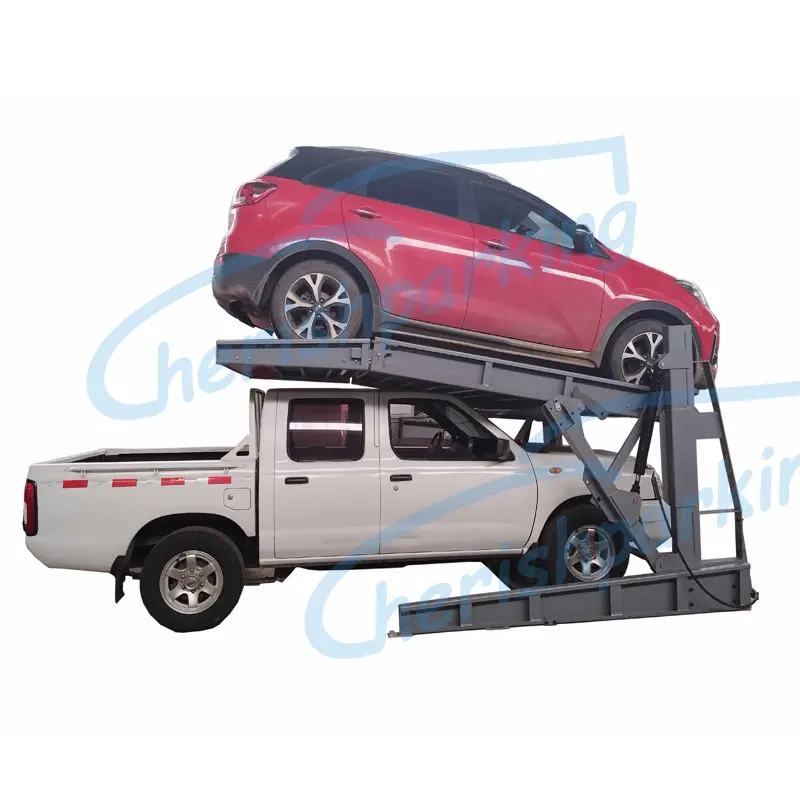

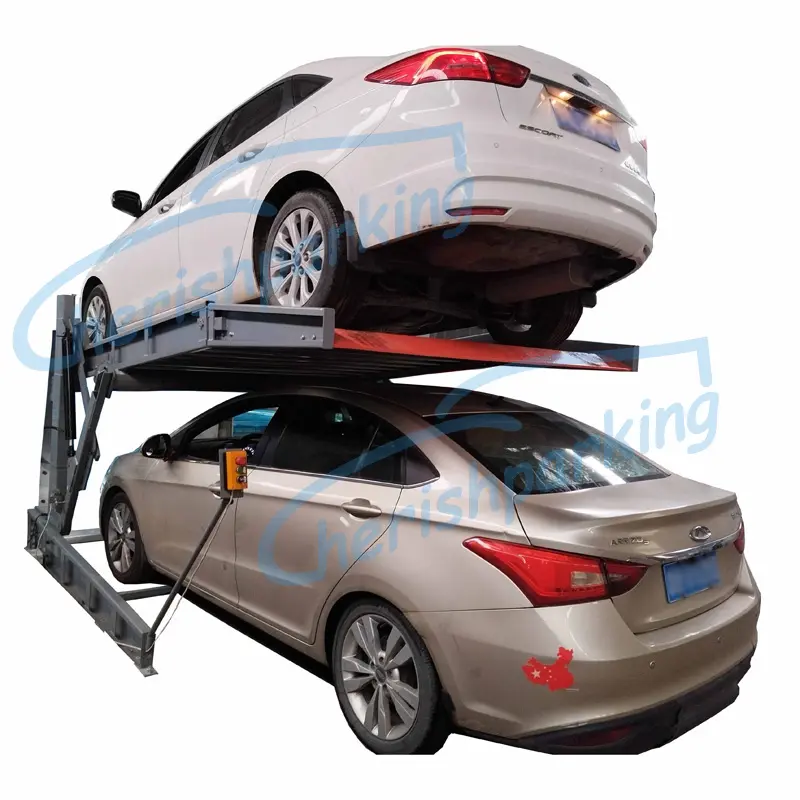

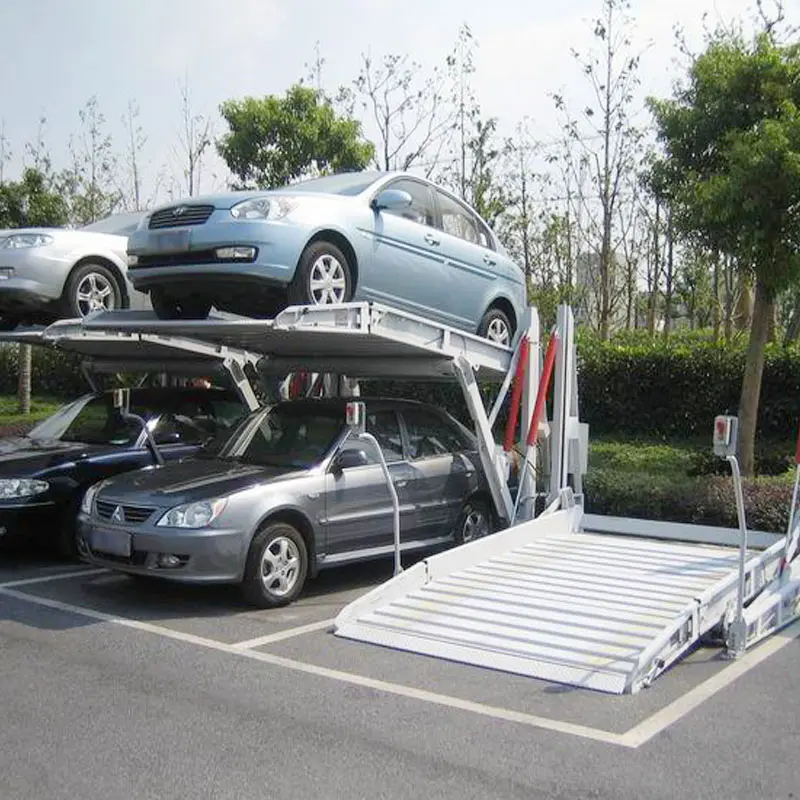

Tilting Car Parking Lift Inclined Car Stacker
Products Feature
· Specifically designed for low ceiling heights. This design addresses the space constraints of areas with limited vertical clearance.
· This mini - type inclined parking lift is suitable for areas with height restrictions, especially in basements or apartment corners. It effectively utilizes these confined spaces.
· It has a lifting capacity of 2000 kg and is only applicable to sedans. This capacity meets the needs of most common sedans.
· Features a 10 - degree inclined platform. The incline helps with vehicle entry and exit in a more ergonomic way.
· Driven directly by dual hydraulic lifting cylinders. This direct - drive system ensures stable and efficient lifting.
· Equipped with a separate hydraulic power unit and control panel. This setup allows for easy operation and management.
· It can be moved or re - positioned. This flexibility enables it to adapt to different layout requirements.
· An electric key switch is installed to ensure safety. It adds a layer of security to prevent unauthorized use.
· Automatically shuts down if the operator releases the key switch. This is a safety feature to avoid unexpected operation.
· Both electric and manual locking release options are available for your choice. It provides convenience in different situations.
· A vehicle detection sensor is included. It helps in accurately detecting the presence of a vehicle.
· There is a sound and lighting warning system. This system alerts operators and nearby people during operation.
· The maximum lifting height is adjustable to adapt to different heights. It can meet the needs of various vehicle types.
· A mechanical anti - fall lock is set at the top position. This lock ensures safety in case of lifting system failures.
· Hydraulic overload protection is provided. It safeguards the lift from damage caused by excessive loads.

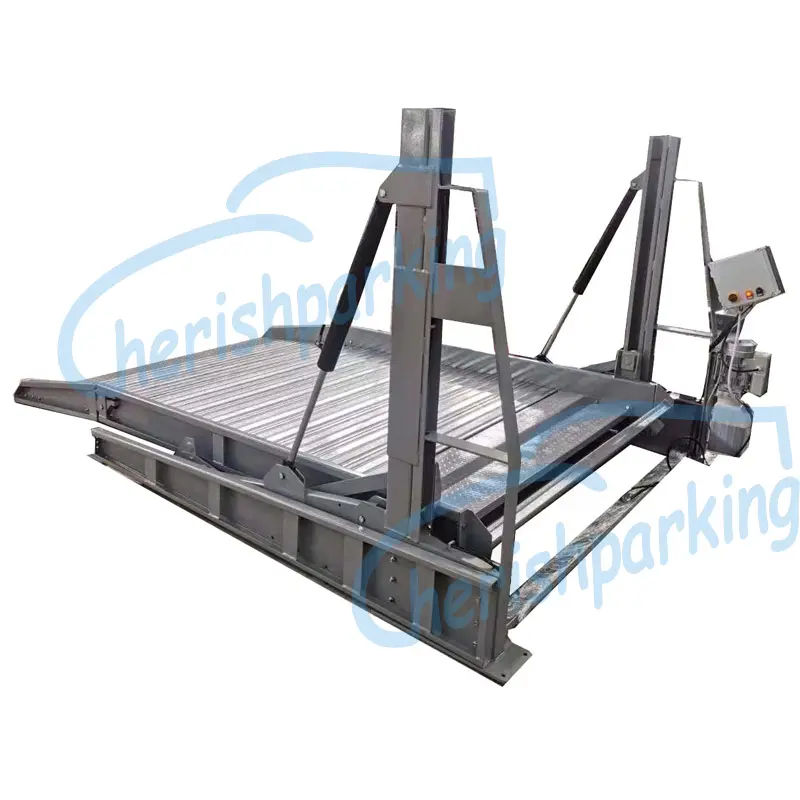

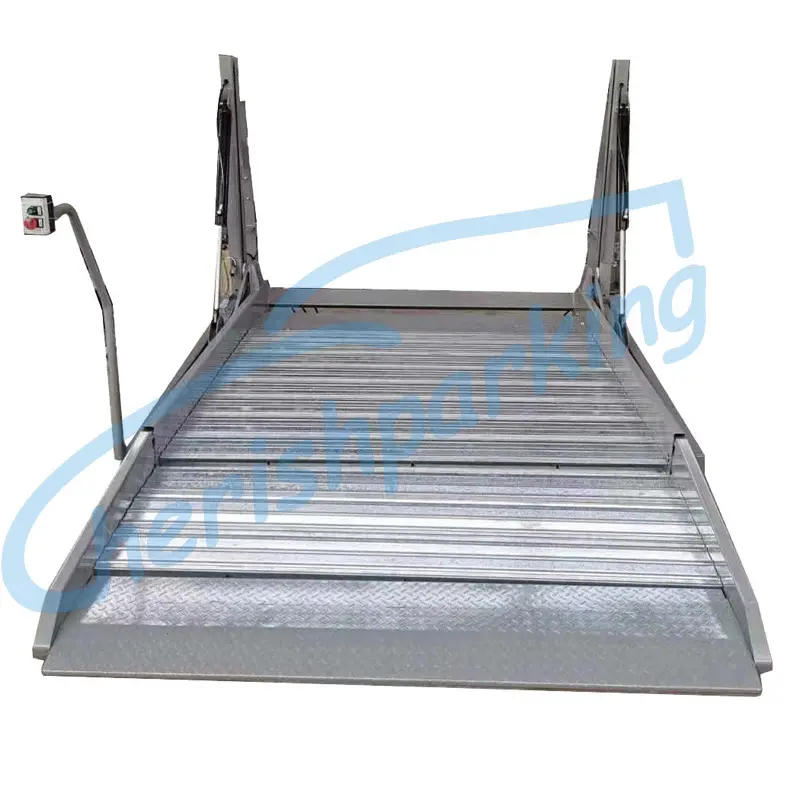

· The platform is galvanized with corrugated plates for better parking. It offers better traction and vehicle stability.
Specifications
| Model No. | CHPLA2500 |
| Lifting Capacity | 2000 kg |
| Lifting Height | 1400-2000 mm |
| Usable Platform Width | 2000 mm |
| Overall Width | 2496 mm |
| Overall Length | 3810 mm |
| Power Supply / Motor Capacity | 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw 50/45 s |
| Lock Device | Electric Lock |
| Lock Release | Electric Release |
| Drive Mode | Hydraulic Drive |

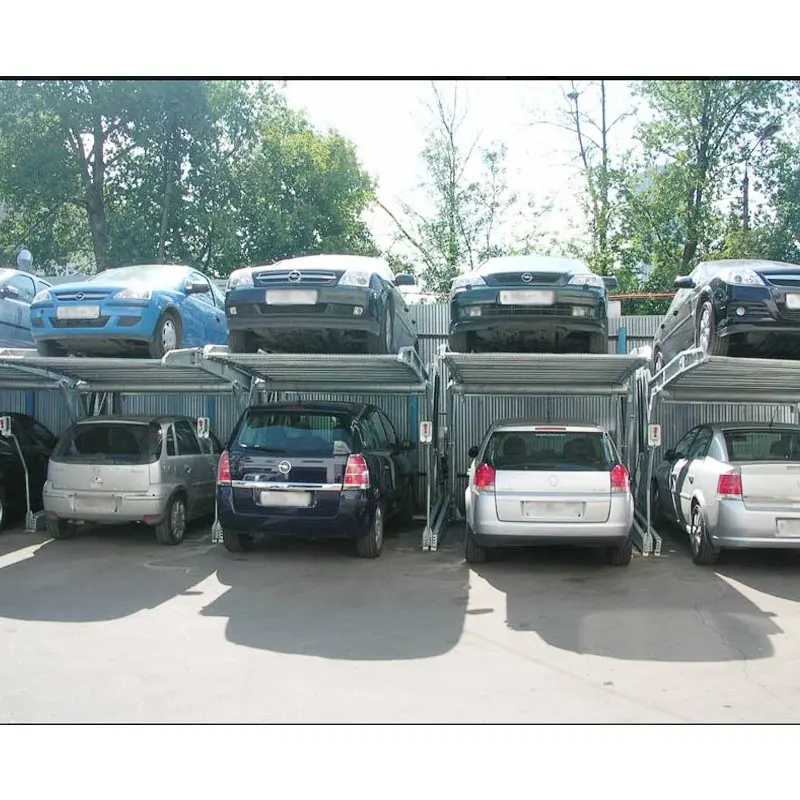

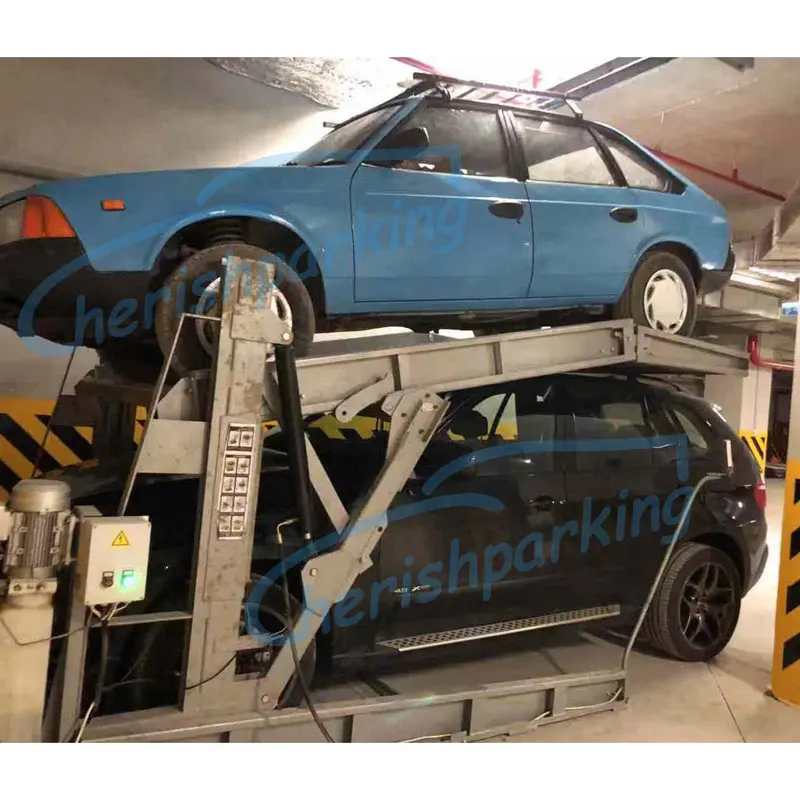

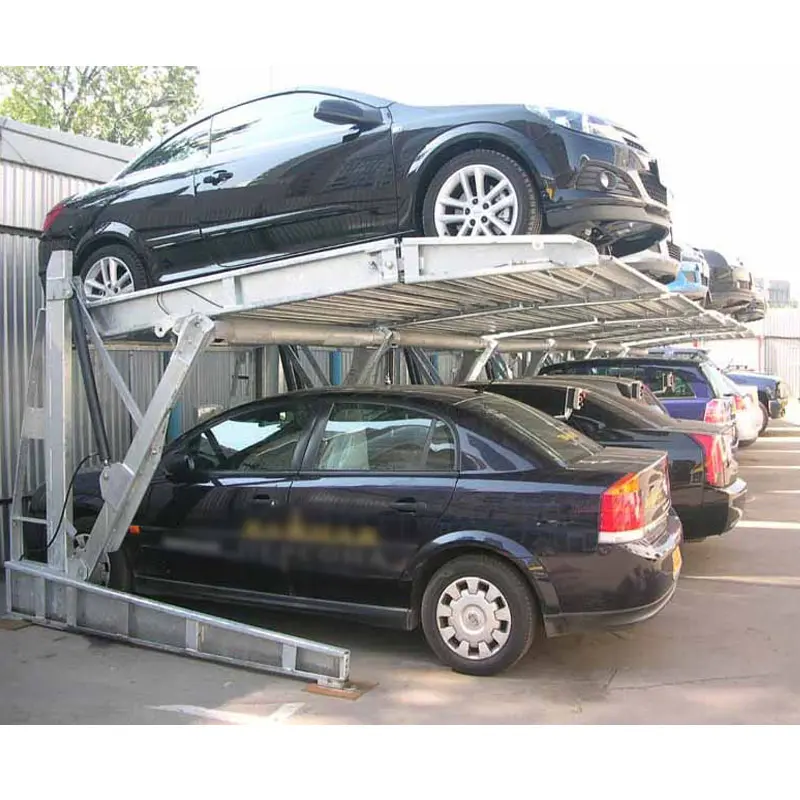

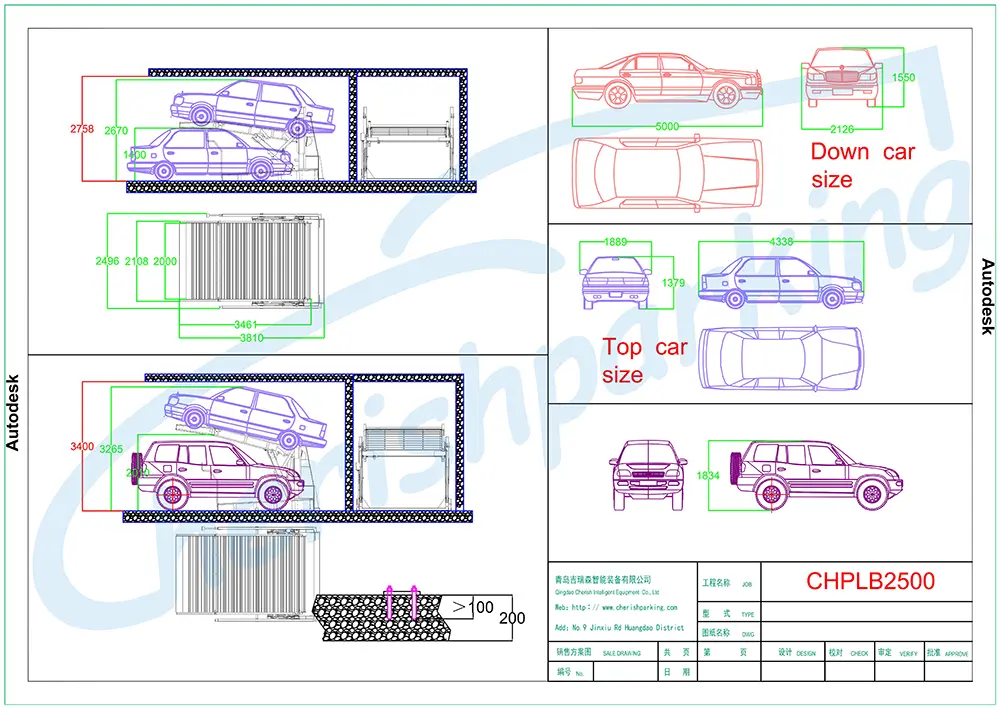

Drawing & Case
